DMF Lighting C Series LED Module, 80+ CRI, 3500K, 17 W, CM15835WFO

ROCK SKU: DMF-CM15835WFO
MFG Part #: CM15835WFO

Contact us for pricing

CONTACT FOR PRICING

Spec Sheet

Estimated Lead Time: 0-2 weeks

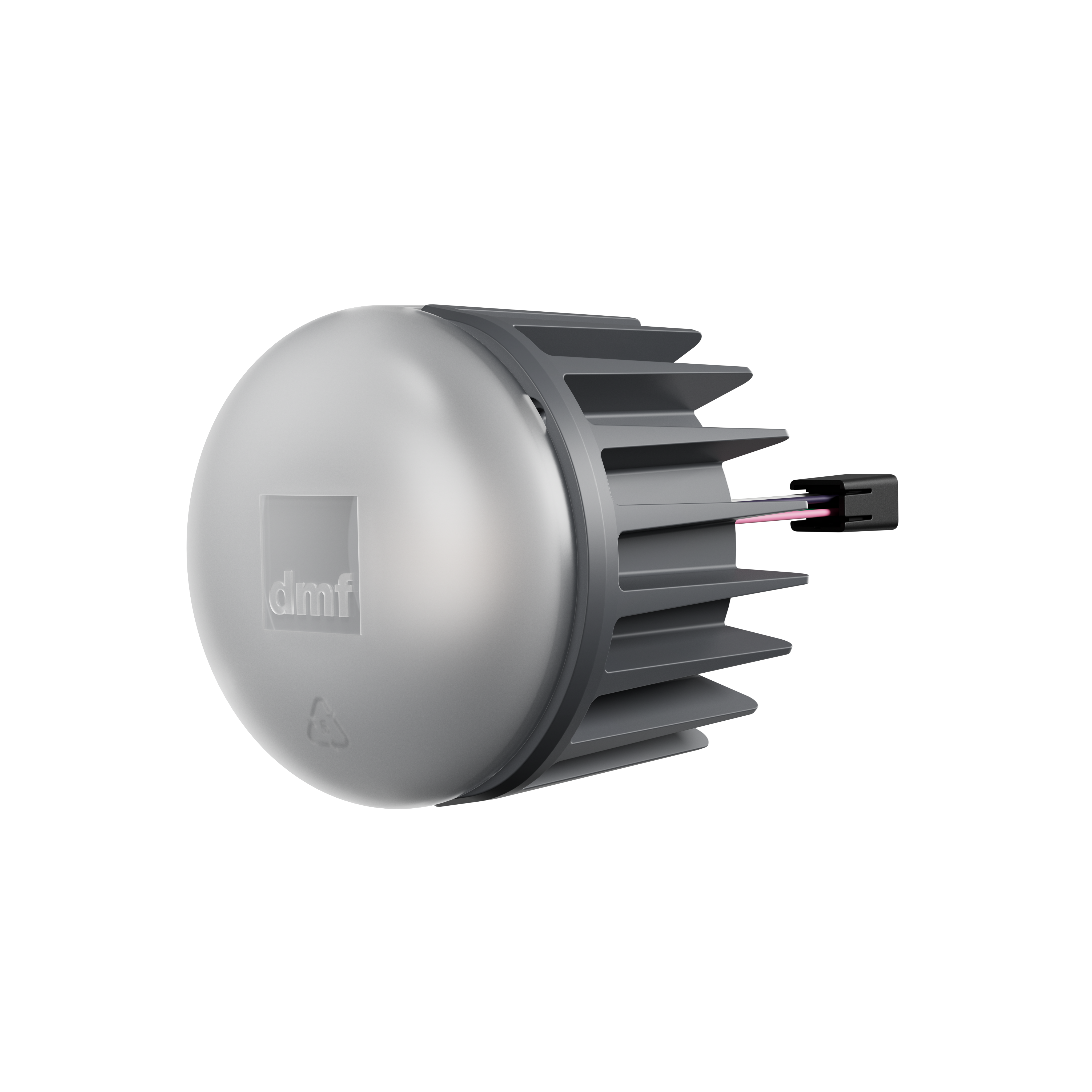

The DMF Lighting CM15835WFO is a C-Series LED light module. C-Series is a modular recessed platform in which the housing, light module and trim are ordered as separate catalog numbers.

Input Voltage: 120/277V 50/60Hz
Dimming: 0-10V (5%)
Cri: 80+ CRI
Sdcm: 3-step SDCM
Beam Spread: General Ambient (90°+)
Led Chip: Cree
Power Factor: >0.9
Thd: <20%
Ambient Operating Temp: -20°C to 40°C
Connector: 6 pin Molex
Warranty: 5 year limited; 50000 hours at 70% lumen maintenance
Dimensions: 3.7in (94.7mm) x 4in (101mm) x 2.8in (71.3mm)
Listings: ENERGY STAR Qualified; UL Listed for Wet Location; UL Certified US-CA; Declare; RoHS compliant; NSF/ANSI 2; suitable for splash-zone; FCC Title 47 Part 15 Class B
Lumens Nominal: 1500 lm
Wattage: 17 W
Cct: 3500K
Max Input Current: 0.142 A (120V) / 0.074 A (277V)

Specifications are taken from the DMF Lighting C-Series spec sheet.

input_voltage	120/277V 50/60Hz
dimming	0-10V (5%)
cri	80+ CRI
sdcm	3-step SDCM
beam_spread	General Ambient (90°+)
led_chip	Cree
power_factor	>0.9
thd	<20%
ambient_operating_temp	-20°C to 40°C
connector	6 pin Molex
warranty	5 year limited; 50000 hours at 70% lumen maintenance
dimensions	3.7in (94.7mm) x 4in (101mm) x 2.8in (71.3mm)
listings	ENERGY STAR Qualified; UL Listed for Wet Location; UL Certified US-CA; Declare; RoHS compliant; NSF/ANSI 2; suitable for splash-zone; FCC Title 47 Part 15 Class B
lumens_nominal	1500 lm
wattage	17 W
cct	3500K
max_input_current	0.142 A (120V) / 0.074 A (277V)
