DMF Lighting C Series 6" Round New Construction Non-IC Housing, C6NCRN

ROCK SKU: DMF-C6NCRN
MFG Part #: C6NCRN

Contact us for pricing

CONTACT FOR PRICING

Spec Sheet

Estimated Lead Time: 0-2 weeks

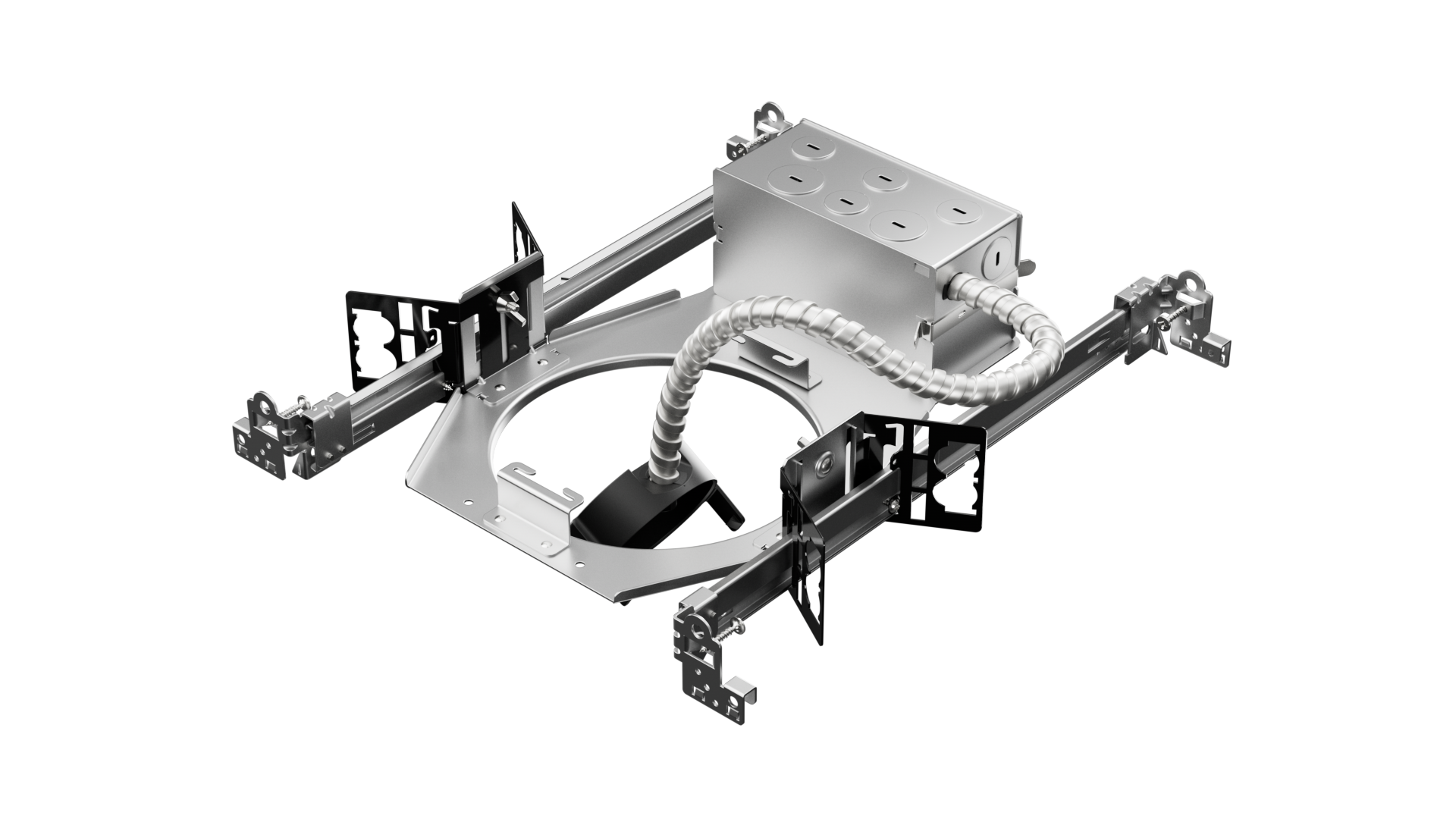

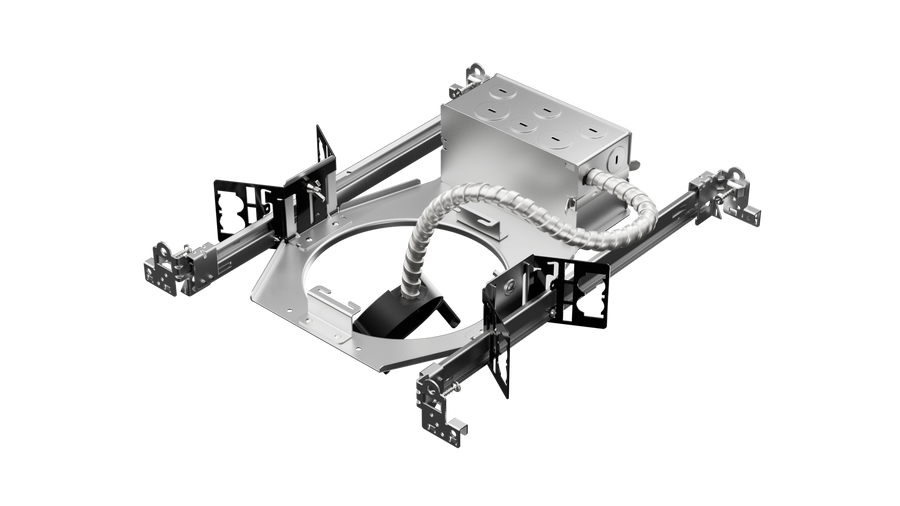

The DMF Lighting C6NCRN is a C-Series new construction non-IC housing. C-Series is a modular recessed platform in which the housing, light module and trim are ordered as separate catalog numbers.

Input Voltage: 120/277V 50/60Hz
Ceiling Thickness: 5/8in to 1-1/4in
Ceiling Material: Drywall, ACT
Joist Spacing: Standard 14in and 24in; modified 11-24in via scored bar hangers
Mounting: Pre-installed butterfly bracket and adjustable bar hangers; compatible with joist/stud, Armstrong, Hat Channel, T Bar. With bar hangers removed the butterfly bracket accepts C Channel Bar, 1/2in Pipe, Steel Bar
Listing: Compliant to FCC Title 47 Part 15 Class B
Warranty: 5 year limited warranty
Cutout: 6-1/2in (165mm)
Junction Box: 9 knockouts: four 3/4in and two 1in trade size on top, three 3/4in on sides. Approved for 8 (four in, four out) #12 AWG 70C
Application: New Construction, Round, Non-IC
Emergency: None

Specifications are taken from the DMF Lighting C-Series spec sheet.

input_voltage	120/277V 50/60Hz
ceiling_thickness	5/8in to 1-1/4in
ceiling_material	Drywall, ACT
joist_spacing	Standard 14in and 24in; modified 11-24in via scored bar hangers
mounting	Pre-installed butterfly bracket and adjustable bar hangers; compatible with joist/stud, Armstrong, Hat Channel, T Bar. With bar hangers removed the butterfly bracket accepts C Channel Bar, 1/2in Pipe, Steel Bar
listing	Compliant to FCC Title 47 Part 15 Class B
warranty	5 year limited warranty
cutout	6-1/2in (165mm)
junction_box	9 knockouts: four 3/4in and two 1in trade size on top, three 3/4in on sides. Approved for 8 (four in, four out) #12 AWG 70C
application	New Construction, Round, Non-IC
emergency	None
