/ Wattstopper Power Pack, 120-277V, 50/60Hz, 24VDC, 225mA, BZ-50

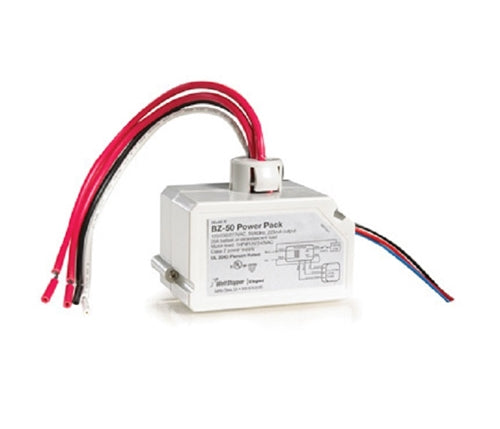

Wattstopper Power Pack, 120-277V, 50/60Hz, 24VDC, 225mA, BZ-50
- ROCK SKU: WAT-BZ-50
- UPC: 754182922901
- MFG Part #: BZ-50
$55.38
$37.41
Product dimensions
-
Width:
1.6 IN
-
Height:
2.75 IN
-
Depth:
1.6 IN
-
Weight:
0 LBS
The BZ-50 Universal Voltage Power Pack provides 24 VDC operating voltage to Wattstopper’s low-voltage occupancy sensors. This device is constructed with environmentally friendly materials and is RoHS-compliant.
- Self-contained power supply relay system
- Efficient switching power supply providing optimized current output based on number of sensors
- LED indicates status of relay or if there is a low-voltage overcurrent
- The product meets the materials restrictions of RoHS
- Zero crossing circuitry for reliability and increased product life
- UL 2043 plenum rated for cost-effective installation
- 1/2" snap-in nipple attaches to standard electrical enclosures through 1/2" knockouts
- 120/277VAC; 230/240V (single phase); 50/60Hz voltage input
- Load Requirements: Ballast; Incandescent: 20amp @120/277VAC; Eballast: 16amp @277VAC; Motor: 1HP @120/240VAC
- Output: 225mA @24VDC (with relay connected)
- Low-voltage leads are rated for 300 volts
| Brand | Wattstopper |
| Manufacturer Part Number | BZ-50 |
Product dimensions
-
Width:
1.6 IN
-
Height:
2.75 IN
-
Depth:
1.6 IN
-
Weight:
0 LBS
