Wattstopper Power Pack, 120-277V, 50/60Hz, 24VDC, 225mA, BZ-200
- ROCK SKU: WAT-BZ-200
- UPC: 754182938032
- MFG Part #: BZ-200
$65.00
$47.48
Product dimensions
-
Width:
1.5 IN
-
Height:
3 IN
-
Depth:
2.4 IN
-
Weight:
0 LBS

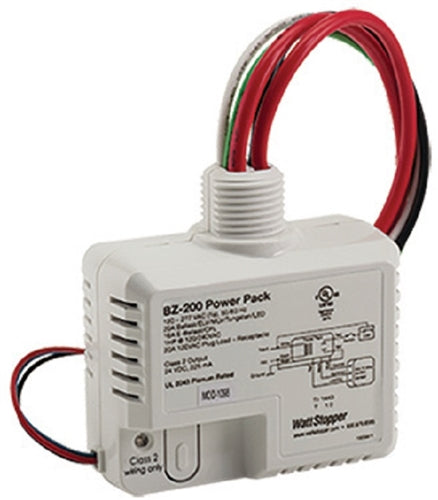

The BZ-200 power pack switches connected loads On and Off in response to Wattstopper low voltage occupancy sensors. It also provides up to 225mA at 24VDC to power the sensors. This device is constructed with environmentally friendly materials and is RoHS-compliant
- Efficient switching power supply provides optimized current output based on number of sensors
- Includes short circuit and thermal protection
- LED indicates status of relay or presence of low-voltage overcurrent
- UL 2043 plenum rated for cost-effective installation
- UL listed for control of lighting and plug loads
- Tested to NEMA 410 criteria for electronic ballast and driver inrush current
- 1/2" threaded nipple attaches to standard electrical enclosures through 1/2" knockouts
- Input/output voltage:120-277VAC; 50/60Hz
- Secondary output: 24VDC; 225mA (with relay connected)
- Low-voltage leads rated for 300 volts
- UL-rated 94 V-O plastic enclosure
| Brand | Wattstopper |
| Manufacturer Part Number | BZ-200 |
