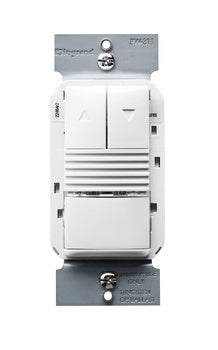

0-10V PIR Wall Switch Occ sensor, 120/277V, White, USA
- ROCK SKU: PW-311-W-U
- UPC: 754182940738
- MFG Part #: PW-311-W-U
$203.50
$159.90
Product dimensions
-
Width:
1.8 in
-
Height:
4.1 in
-
Depth:
36.0 cu in
-
Weight:
1.8 in
The PW-311 passive infrared (PIR) dimming wall switch sensor can turn lights OFF and ON based on occupancy and allow the user to increase or decrease the lighting level. It works with 0-10 VDC dimming drivers and ballasts to control lighting loads including LEDs.
- Vandal resistant lens combines precise coverage with durability
- Presentation mode may be deactivated to allow Auto-ON operation after 15 second time delay
- Optional Smart Light Level adapts ambient light hold off threshold to meet user needs
- Selectable walk-through mode turns lights off three minutes after the room is initially occupied if no motion is detected after the first 30 seconds
- Test mode allows quick and easy verification of coverage
- Selectable audible and/or visual alerts for impending shutoff
- LED indicates occupancy detection
| Color | White |
| Product Series | PW-310 |
| Type | Sensor, Switch |
| Finish | Glossy |
| Application Sector | Commercial |
| Product Line | Wattstopper |
| Country Of Origin | United States |
| Features | Adjustable Time Delay, Dimming, Indicator Lights, Light Level Sensor, Sensitivity Adjustment, Vandal Resistant Lens |
| Included | Sensor Mask |
| Installation Location | Wall |
| Switch Type | Motion Sensor |
| Warranty Type | 5-Year |
| Standard | UL, cUL, E101196, UL 924, Complies with 2017 NEC requirements, RoHS, BAA, TAA |
| Number of Rockers | 0 |
| On Function | Selectable Auto/Manual |
| Requires Neutral Wire | No |
| Wire Connection Type | Flying Leads |
| Has Battery | No |
| Indicator | PIR Detection LED |
| Indoor/Outdoor | Indoor |
| Input Voltage | 120/230/240/277 VAC |
| Line Frequency | 50 Hz, 60 Hz |
| Load Rating | 1000 W @ 120 VAC, 1200 W @ 240/277 VAC |
| Mounting Type | In-Wall |
| Number of Buttons | 2 |
| Number of Poles | Multi-Location, Single Pole |
Product dimensions
-
Width:
1.8 in
-
Height:
4.1 in
-
Depth:
36.0 cu in
-
Weight:
1.8 in
