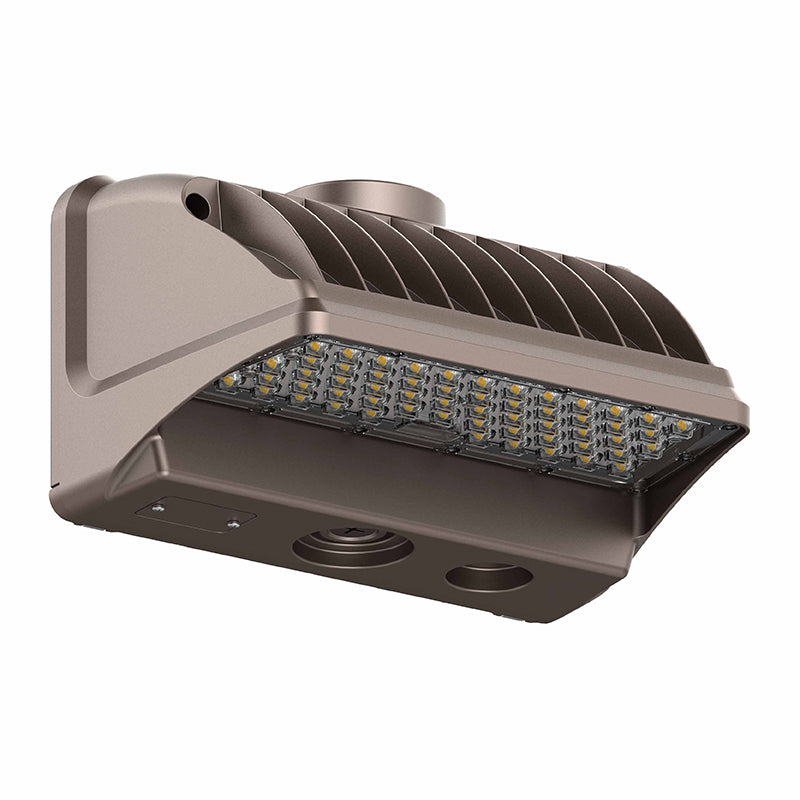

Westgate Mfg X-GEN Cut-Off Wall Pack, 11/21/32/42W, CCT Selectable, 0-10V Dimming, 120-277V, Bronze, WPX-42W-MCTP
- ROCK SKU: WES-WPX-42W-MCTP
- UPC: 845060063295
- MFG Part #: WPX-42W-MCTP
$141.78
$125.74
The Westgate Mfg WPX-42W-MCTP is an X-GEN cut-off LED wall pack for commercial building exteriors, parking areas, and egress zones requiring adjustable performance. Wattage is field-selectable at 11W, 21W, 32W, or 42W with CCT switchable across 3000K, 4000K, and 5000K, plus 0–10V dimming on 120–277V; Lumileds LEDs deliver 135 lm/W through a polycarbonate optic lens. UL listed, IP65 rated, BUG rated B0-U0-G1, with a 70,000-hour rated life and 7-year warranty. Bronze finish aluminum housing.
| Watts | 11/21/32/42W (Field-Adjustable) |
| Lumens | 1,485–5,670 lm |
| Color Temperature | CCT Selectable (3000K/4000K/5000K) |
| CRI | 80+ |
| Voltage | 120-277V |
| Dimming | 0-10V Dimmable |
| IP Rating | IP65 |
| Rated Life | 70,000 hours |
| Finish | Bronze |
| Listing | UL |
