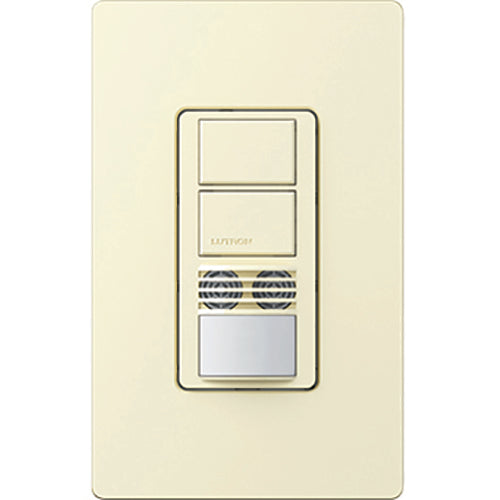

Lutron Maestro Dual Circuit Dual-Tech Motion Sensor Switch, TAA Compliant, 6A, 120-277V, Single Pole/3-Way, Neutral Required, WMS-B202-AL, Almond
- ROCK SKU: LUT-WMS-B202-AL
- UPC: 784276284097
- MFG Part #: WMS-B202-AL
$145.00
$84.55
Estimated Lead Time: 4-5 weeks
Product dimensions
-
Width:
2.25 IN
-
Height:
3.38 IN
-
Depth:
4.5 IN
-
Weight:
0.32 LBS
XCT Technology for major, minor, fine, and very fine motion detection
- 180 deg sensor field-of-view
- Up to 900 ft2 (81 m2) major motion coverage and 400 ft2 (36 m2) minor motion coverage
- Two Ambient Light Detect (ALD) options: Learning ALD Mode: Uses adaptive algorithm. Sensor learns user's preferred light level over time. Fixed ALD mode: Four selectable light level thresholds: Hi, Med, Low, Min
- Occupancy models (MS-A102-XX, MS-B102-XX, MS-A202-XX, MS-B202-XX) can be set to Auto-ON / Auto-OFF or Manual-ON / Auto-OFF per circuit
- Adjustable timeout for each circuit (1, 5, 15, or 30 minutes)
- Sensitivity adjustment; PIR (Hi, Med, Low, Min); Ultrasonic (Hi, Med, Low, Off)
- Switches all lighting loads: incandescent, halogen, ELV, MLV, CFL, LED, magnetic fluorescent, electronic fluorescent
| Application | Lighting Control |
| Standard | UL, cUL, NOM |
| Supply Voltage | 120 to 277 |
| Type | Occupancy sensor switch, dual-circuit, multi-location/3-way/single-pole |
| Load | 6 A@10-277 VAC lights/4.4 A (0.167 HP)@120 VAC fan |
| Operating Temperature, Maximum | 104 °F |
| Operating Temperature, Minimum | 32 °F |
| Sensing Range, Maximum | 900 |
| Sensing Range, Minimum | 400 |
| Environmental Conditions | 0 to 90% humidity, non-condensing. Indoor use only. |
| Enclosure | Plastic |
| Body | Plastic |
| Decorative Color | Almond |
| Indicator | Smart ambient light detection (ALD)/Fixed ambient light detection |
| Mounting | Wallbox |
Product dimensions
-
Width:
2.25 IN
-
Height:
3.38 IN
-
Depth:
4.5 IN
-
Weight:
0.32 LBS
