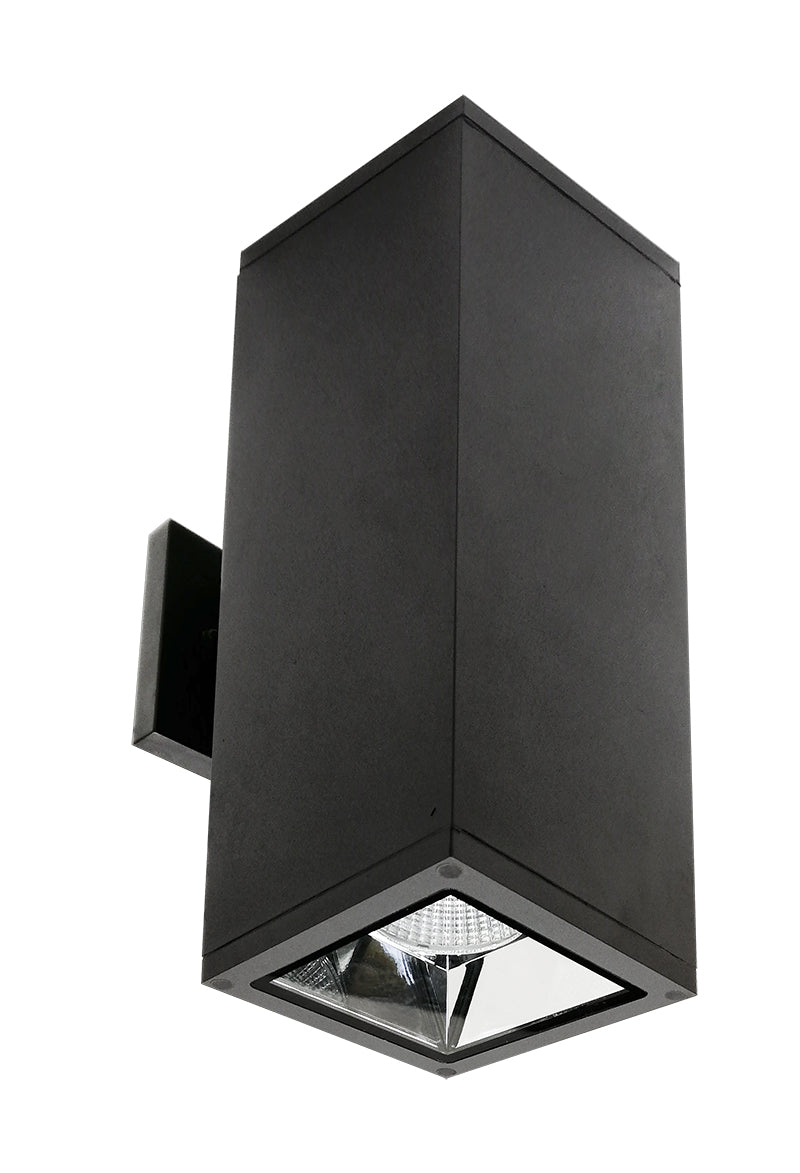

Westgate Mfg WMCS5 Wall Cylinder Up/Down Light, 40W, CCT Selectable, TRIAC/0-10V Dimming, Black, WMCS5-UDL-MCT-BK-DD
- ROCK SKU: WES-WMCS5-UDL-MCT-BK-DD
- UPC: 845060085037
- MFG Part #: WMCS5-UDL-MCT-BK-DD
$214.78
$189.74
The Westgate Mfg WMCS5-UDL-MCT-BK-DD is a 5-inch square wall cylinder up/down light rated at 40W, suited for wet-location wall mounting on building exteriors, entryways, and commercial facades requiring bidirectional illumination. It produces 3,200 lumens via COB LED with field-selectable CCT (3000K/4000K/5000K) and supports TRIAC and 0-10V dual dimming for integration with a wide range of dimming controls. ETL listed for wet locations, 120–277V universal voltage, 50,000-hour rated life, and 7-year warranty. Black finish with glass lens.
| Watts | 40W |
| Lumens | 3,200 lm |
| Color Temperature | CCT Selectable (3000K/4000K/5000K) |
| CRI | >80 |
| Dimming | TRIAC + 0-10V |
| Rated Life | 50,000 hours |
| IP Rating | IP65 (Wet Location) |
| Finish | Black |
| Listing | ETL |
| Warranty | 7 years |
