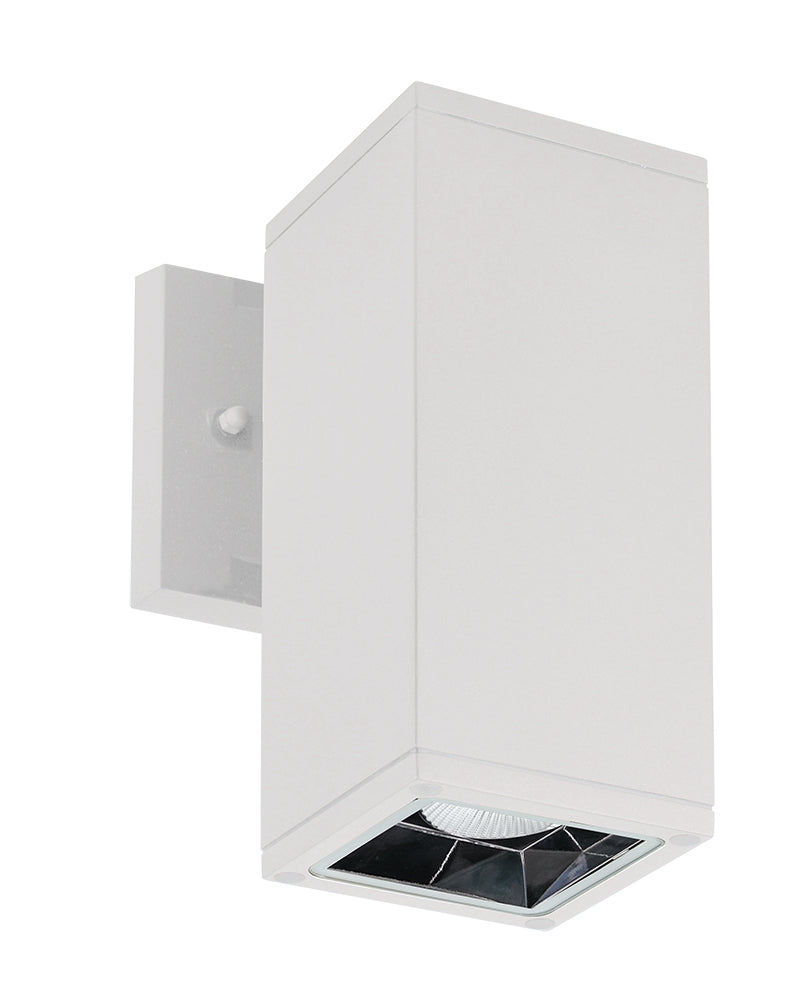

Westgate Mfg WMCS5 Wall Cylinder Downlight, 20W, CCT Selectable, TRIAC/0-10V Dimming, White, WMCS5-DL-MCT-WH-DD
- ROCK SKU: WES-WMCS5-DL-MCT-WH-DD
- UPC: 845060085006
- MFG Part #: WMCS5-DL-MCT-WH-DD
$188.78
$167.74
The Westgate Mfg WMCS5-DL-MCT-WH-DD is a 5-inch square wall cylinder downlight rated at 20W and designed for wet-location exterior and interior wall applications including building facades, entryways, and corridors. It delivers 1,600 lumens via COB LED with selectable CCT (3000K/4000K/5000K) and supports both TRIAC and 0-10V dual dimming for broad compatibility with commercial dimming systems. ETL listed for wet locations, 120–277V universal voltage, with a 50,000-hour rated life and 7-year warranty. White finish with glass lens.
| Watts | 20W |
| Lumens | 1,600 lm |
| Color Temperature | CCT Selectable (3000K/4000K/5000K) |
| CRI | >80 |
| Dimming | TRIAC + 0-10V |
| Rated Life | 50,000 hours |
| IP Rating | IP65 (Wet Location) |
| Finish | White |
| Listing | ETL |
| Warranty | 7 years |
