Westgate STL4 Gen. 4 Street Light, 80/100/150/200W, 3000K, 0-10V Dimmable, 480V, Light Grey, STL4-80-200W-30K-480V
- ROCK SKU: WES-STL4-80-200W-30K-480V
- UPC: 845060088588
- MFG Part #: STL4-80-200W-30K-480V
$635.78
$563.74

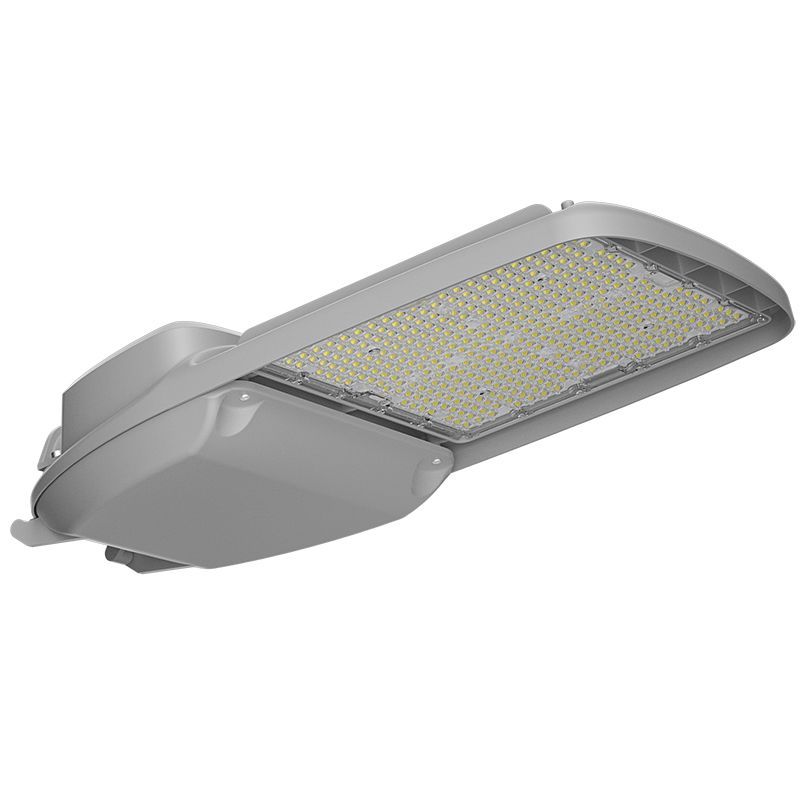

The Westgate STL4-80-200W-30K-480V is a Gen. 4 power-tunable LED street light built for high-output roadway, arterial, and large area lighting applications on 480V distribution systems. Selectable wattage of 80W, 100W, 150W, or 200W delivers up to 140 LM/W efficacy at 3000K, with 0–10V dimming and an included shorting cap for photocell-ready installations. UL listed, IP65 rated, and constructed with a die-cast aluminum housing and powder coat finish rated for –40°F to 104°F. Light grey finish with a 7-year warranty and 70,000-hour rated life.
| Watts | 80/100/150/200W (Field-Adjustable) |
| Lumens | 11,200–28,000 lm |
| Color Temperature | 3000K |
| Voltage | 480V |
| Dimming | 0-10V |
| IP Rating | IP65 |
| Rated Life | 70,000 hours |
| Finish | Light Grey |
| Listing | UL |
| Warranty | 7 years |
