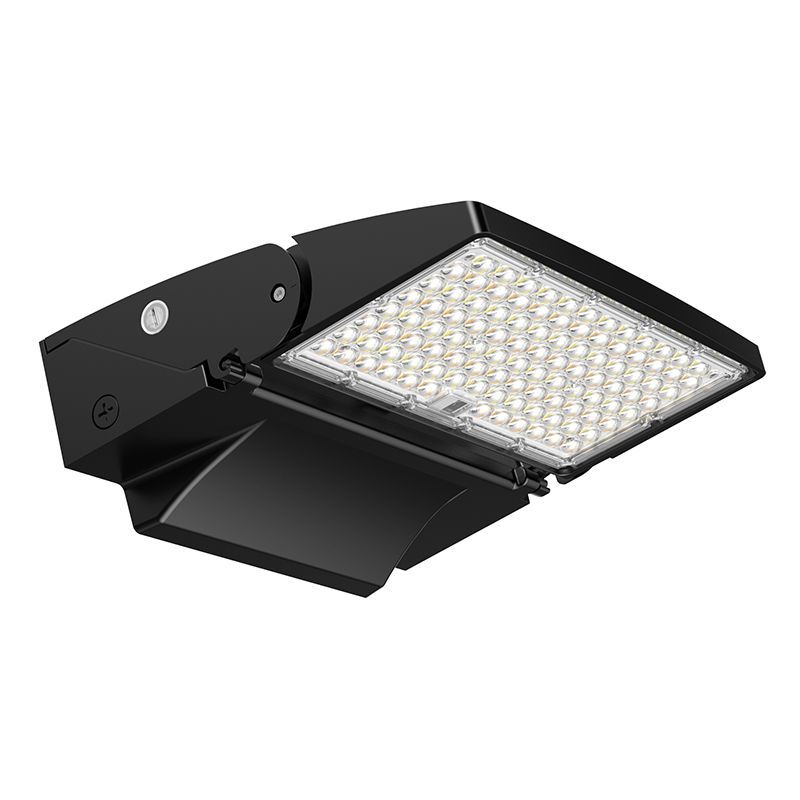

Westgate Mfg X-Gen Wall Pack, 20/30/40W, CCT Selectable, 0-10V Dimming, Black, WAX-20-40W-MCTP-BK
- ROCK SKU: WES-WAX-20-40W-MCTP-BK
- UPC: 840378319133
- MFG Part #: WAX-20-40W-MCTP-BK
$190.78
$168.74
The Westgate Mfg WAX-20-40W-MCTP-BK is an X-Gen series LED wall pack with selectable 20/30/40W output and field-switchable CCT (3000K/4000K/5000K), engineered for building perimeters, loading docks, and commercial egress lighting in a black die-cast aluminum finish. Rated at 140 lm/W with 0–10V dimming, IP65-rated for wet locations, and operating from 120–277V across a -40°F to 122°F temperature range. UL listed and DLC Premium qualified with a 7-year warranty; Lumileds 2835 source with T4 optic and BUG rating B2-U2-G1.
| Watts | 20/30/40W (Field-Adjustable) |
| Color Temperature | CCT Selectable (3000K/4000K/5000K) |
| CRI | 80 |
| Voltage | 120-277V |
| Dimming | 0-10V |
| IP Rating | IP65 |
| Rated Life | 50,000 hours |
| Finish | Black |
| BUG Rating | B2-U2-G1 |
| Listings | UL, DLC Premium |
