Westgate Mfg X-GEN Versatile Wall Pack, 90/105/120W, CCT Selectable, 0-10V, IP65, White, WAX-90-120W-MCTP-WH
- ROCK SKU: WES-WAX-90-120W-MCTP-WH
- UPC: 840378319188
- MFG Part #: WAX-90-120W-MCTP-WH
$244.78
$216.74

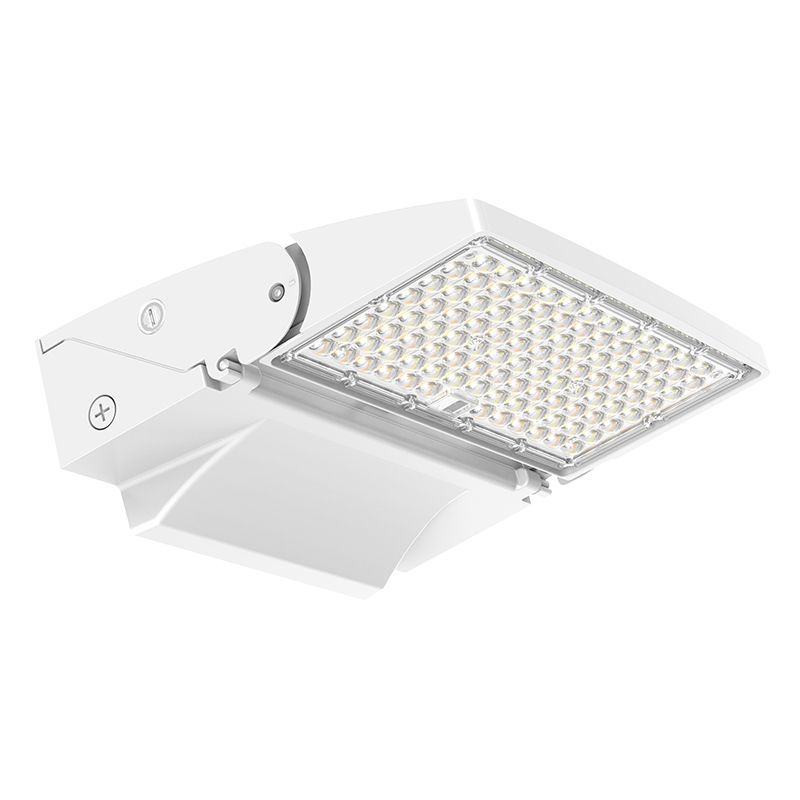

The Westgate Mfg WAX-90-120W-MCTP-WH is a 90/105/120W selectable LED wall pack built for high-output commercial exterior and security lighting on 120–277V. It achieves 140 lm/W efficacy with field-selectable 30K/40K/50K CCT, 0-10V dimming, and Lumileds 2835 LEDs, rated IP65 for wet locations and listed DLC Premium and UL. Die-cast aluminum and PC construction in White finish with a 7-year warranty and 50,000-hour rated life.
| Watts | 90/105/120W (Field-Adjustable) |
| Lumens | 12,600–16,800 lm |
| Color Temperature | CCT Selectable (3000K/4000K/5000K) |
| CRI | 80 |
| Dimming | 0-10V |
| IP Rating | IP65 |
| Finish | White |
| Rated Life | 50,000 hrs |
| Listings | UL, DLC Premium |
| Warranty | 7 years |
