Westgate Mfg X-Gen Seaside Wall Light, 20/30/40W, CCT Selectable, 0-10V/TRIAC Dimming, Horizontal Arm, Black, WSX-20-40W-MCTP-HA
- ROCK SKU: WES-WSX-20-40W-MCTP-HA
- UPC: 845060087239
- MFG Part #: WSX-20-40W-MCTP-HA
$153.78
$136.74

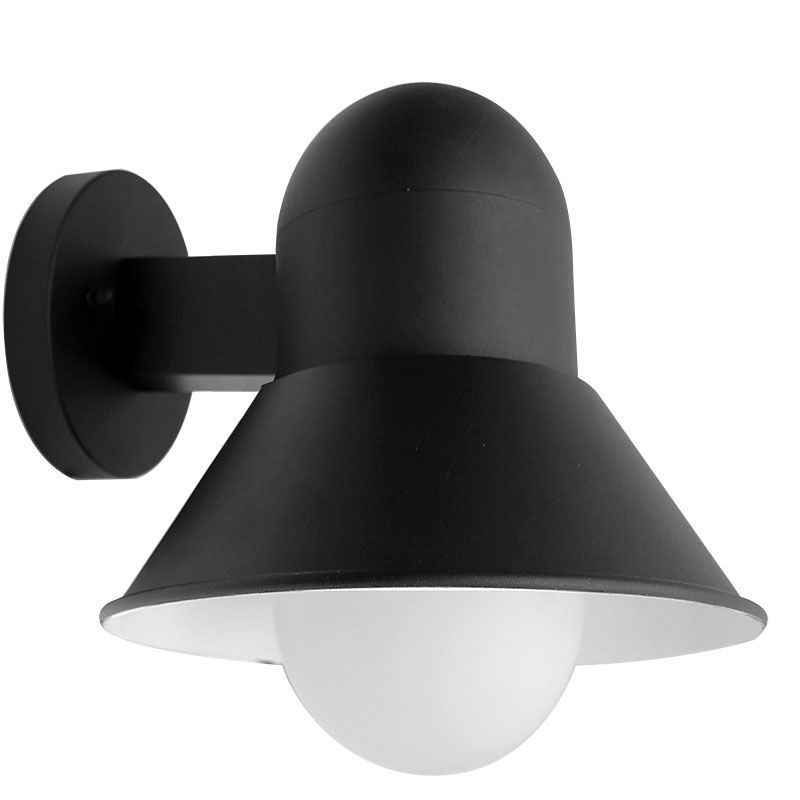

The Westgate Mfg WSX-20-40W-MCTP-HA is an X-Gen Seaside LED wall light rated at 20/30/40W with a horizontal arm mount, designed for exterior façade and architectural lighting applications on 120–277V. Delivering 100 lm/W with field-selectable CCT (3000K/4000K/5000K) and dual 0–10V and TRIAC dimming, it accommodates a broad range of commercial control systems. ETL listed for wet locations with a 70,000-hour rated life and a 7-year warranty. Black finish.
| Watts | 20/30/40W (Field-Adjustable) |
| Lumens | 2,000–4,000 lm |
| Color Temperature | CCT Selectable (3000K/4000K/5000K) |
| Voltage | 120–277V |
| Dimming | 0–10V or TRIAC |
| CRI | 80+ |
| Rated Life | 70,000 hrs |
| IP Rating | Wet Location |
| Listing | ETL |
| Mounting | Horizontal Arm |
| Finish | Black |
