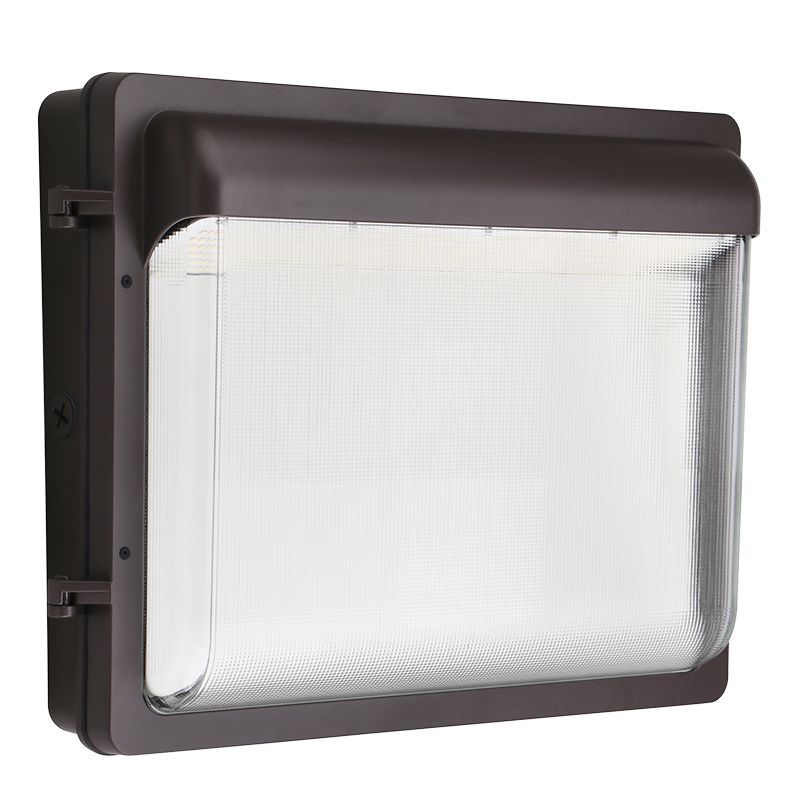

Westgate Mfg X-Gen Flat Glass Wall Pack, 80/100/120W, CCT Selectable, 0-10V, Photocell, Vandal-Resistant, Bronze, WPFX-LG-80-120W-MCTP-P
- ROCK SKU: WES-WPFX-LG-80-120W-MCTP-P
- UPC: 845060092523
- MFG Part #: WPFX-LG-80-120W-MCTP-P
$222.78
$196.74
The Westgate Mfg WPFX-LG-80-120W-MCTP-P is an X-Gen flat glass LED wall pack rated at 80/100/120W delivering 130 lm/W, engineered for high-output exterior applications on commercial buildings, parking structures, and institutional campuses. Three selectable CCT settings (3000K/4000K/5000K), 0-10V dimming, an integrated photocell, and vandal-resistant screw hardware address both energy management and security demands in high-traffic environments. Rated IP65 with a BUG rating of B2-U2-G2, UL listed and DLC Premium qualified, backed by a 7-year warranty; operates on 120–277V.
| Watts | 80/100/120W (Field-Adjustable) |
| Lumens | 10,400–15,600 lm |
| Color Temperature | CCT Selectable (3000K/4000K/5000K) |
| Voltage | 120-277V |
| Dimming | 0-10V |
| IP Rating | IP65 |
| Beam Angle | 127° H × 85° V |
| BUG Rating | B2-U2-G2 |
| Listings | UL, DLC Premium |
| Warranty | 7 Years |
| Finish | Bronze |
