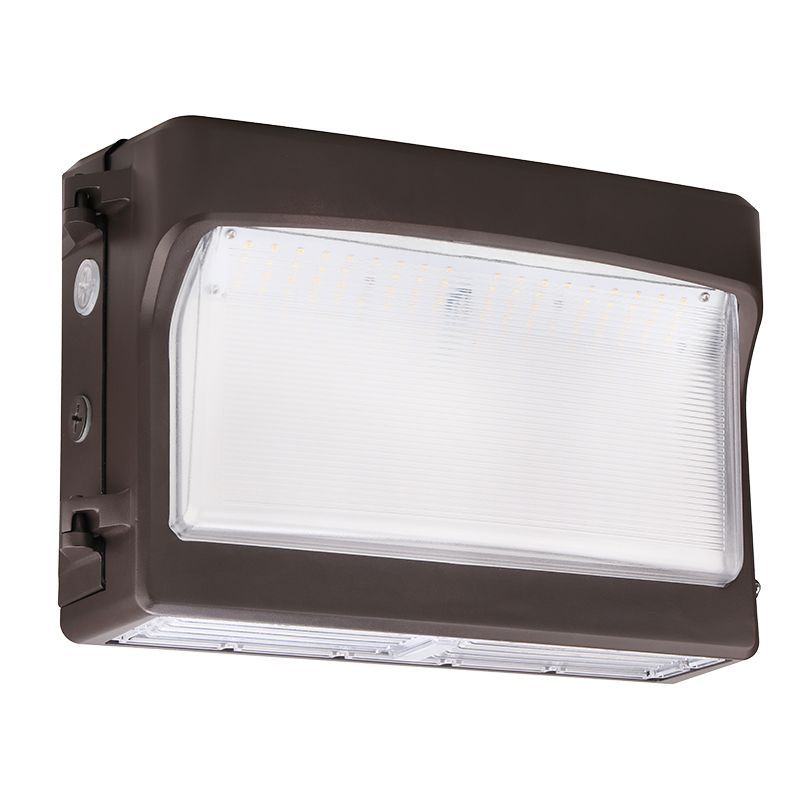

Westgate Mfg WPAX X-Gen Cut-Off Wall Pack, 60/80/100W, CCT Selectable, 0-10V Dimmable, IP65, Bronze, WPAX-100W-MCTP
- ROCK SKU: WES-WPAX-100W-MCTP
- UPC: 845060092479
- MFG Part #: WPAX-100W-MCTP
$185.78
$164.74
The Westgate Mfg WPAX-100W-MCTP is an X-Gen cut-off LED wall pack engineered for commercial building facades, parking lots, and security lighting where full optical cutoff and high efficacy are required. Field-selectable wattage of 60/80/100W with CCT options of 30K/40K/50K delivers up to 13,000 lumens at 130 lm/W efficacy through an asymmetric 97°×77° beam pattern, with 0–10V dimming and a built-in 20% ambient light adjustment for adaptive control. CRI >80, UL listing, and DLC Premium certification support rebate programs on 120–277V; IP65-rated PC and aluminum construction handles -40°C to 50°C operating conditions with a 50,000-hour rated life and 7-year warranty. Bronze finish.
| Watts | 60/80/100W (Field-Selectable) |
| Lumens | 7,800–13,000 lm |
| Color Temperature | CCT Selectable (3000K/4000K/5000K) |
| Voltage | 120-277V |
| CRI | 80+ |
| Dimming | 0-10V |
| IP Rating | IP65 |
| Rated Life | 50,000 hours |
| Finish | Bronze |
| Listing | UL, DLC Premium |
