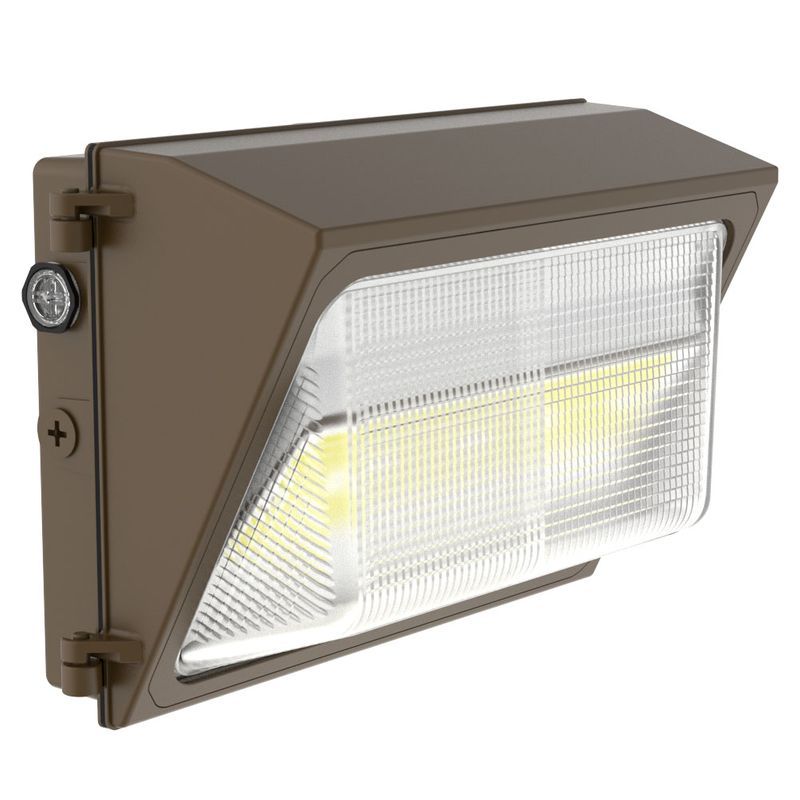

Westgate Mfg WMXE Builder Series Wall Pack, 25/45/65W, CCT Selectable, Photocell, Emergency, Bronze, WMXE-MD-25-65W-MCTP-P-EM
- ROCK SKU: WES-WMXE-MD-25-65W-MCTP-P-EM
- UPC: 845060088694
- MFG Part #: WMXE-MD-25-65W-MCTP-P-EM
$265.78
$234.74
The Westgate Mfg WMXE-MD-25-65W-MCTP-P-EM is a Builder Series LED wall pack with integrated emergency backup, featuring selectable 25/45/65W wattage and CCT tunable 3000K/4000K/5000K output for mid-size commercial building perimeters and code-required egress illumination on 120–277V. Philips Lumileds LEDs yield 140 LM/W efficacy through a glass lens at 120°, with an integrated photocell and 0–10V dimming. UL listed and DLC Premium qualified, IP65 rated with a 50,000-hour rated life and a 7-year warranty. Bronze finish, aluminum and glass construction.
| Watts | 25/45/65W (Field-Adjustable) |
| Lumens | 3,500–9,100 lm |
| Color Temperature | CCT Selectable (3000K/4000K/5000K) |
| Voltage | 120–277V |
| Dimming | 0–10V Dimmable |
| IP Rating | IP65 |
| Rated Life | 50,000 hours |
| Finish | Bronze |
| Listings | UL, DLC Premium |
