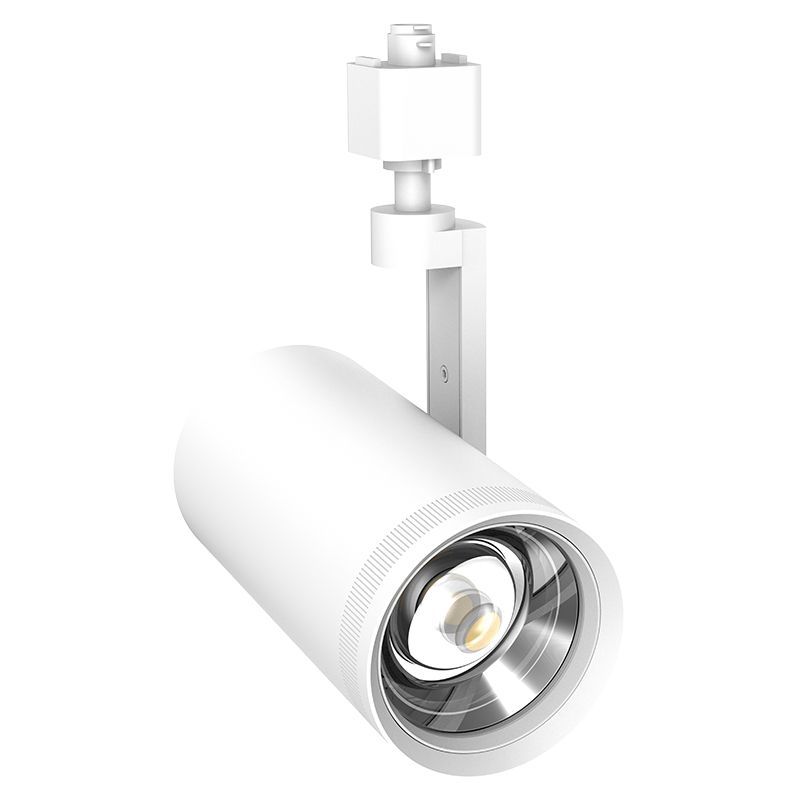

Westgate Mfg Standard Track Head, 20/25/30W, CCT Selectable, CRI90, Adjustable Beam, White, TRS-20-30W-MCTPB-36D-WH
- ROCK SKU: WES-TRS-20-30W-MCTPB-36D-WH
- UPC: 840378310727
- MFG Part #: TRS-20-30W-MCTPB-36D-WH
$123.78
$109.74
The Westgate Mfg TRS-20-30W-MCTPB-36D-WH is a higher-output standard LED track head with selectable 20/25/30W power and an adjustable 20°–50° beam angle, engineered for demanding accent and display lighting in commercial retail, hospitality, and gallery applications on 120V track systems. Five CCT options (2700K–5000K) and CRI >90 are field-selectable, with triac dimming for broad compatibility across control systems. ETL listed, IP40 rated, aluminum construction in white finish, rated for 50,000 hours with a 5-year warranty.
| Watts | 20/25/30W (Field-Adjustable) |
| Lumens | 1,800–2,700 lm |
| Color Temperature | CCT Selectable (2700K/3000K/3500K/4000K/5000K) |
| CRI | 90 |
| Voltage | 120V |
| Dimming | TRIAC |
| Beam Angle | 20°–50° (Adjustable) |
| Rated Life | 50,000 hours |
| IP Rating | IP40 |
| Finish | White |
