/ Westgate Mfg Standard Track Head, 10/15/20W, CCT Selectable,...

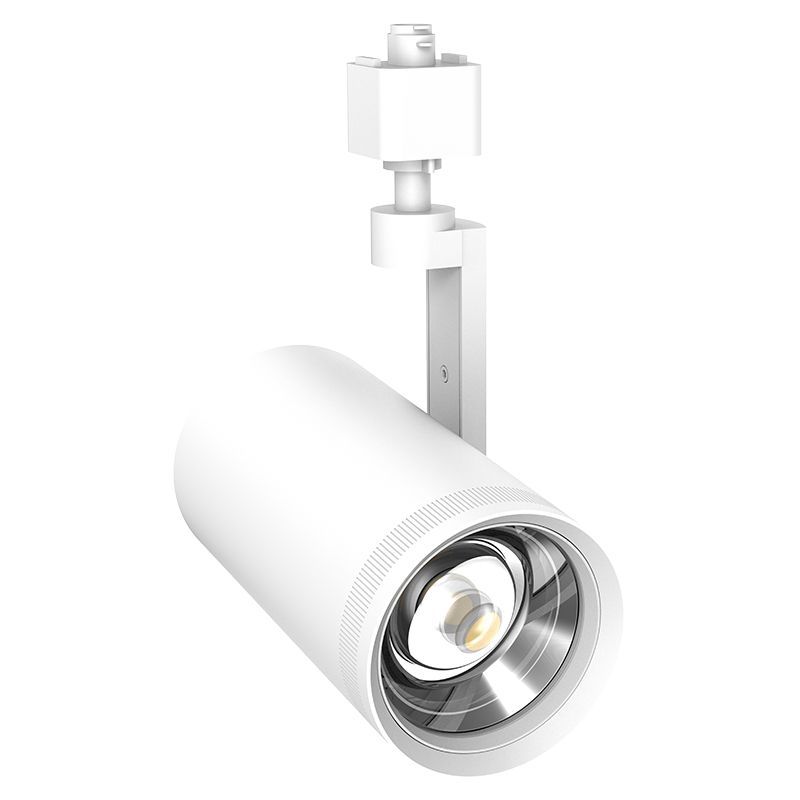

Westgate Mfg Standard Track Head, 10/15/20W, CCT Selectable, CRI90, Adjustable Beam, White, TRS-10-20W-MCTPB-36D-WH
- ROCK SKU: WES-TRS-10-20W-MCTPB-36D-WH
- UPC: 840378310703
- MFG Part #: TRS-10-20W-MCTPB-36D-WH
$101.78
$89.74
The Westgate Mfg TRS-10-20W-MCTPB-36D-WH is a standard LED track head with selectable 10/15/20W output and an adjustable 20°–50° beam angle, suited for accent and display lighting in retail, gallery, and commercial interior applications on 120V track systems. Five CCT options (2700K–5000K) and CRI >90 are field-selectable, with triac dimming for broad control system compatibility. ETL listed, IP40 rated, aluminum construction in white finish, rated for 50,000 hours with a 5-year warranty.
| Watts | 10/15/20W (Field-Adjustable) |
| Lumens | 900–1,800 lm |
| Color Temperature | CCT Selectable (2700K/3000K/3500K/4000K/5000K) |
| CRI | 90 |
| Voltage | 120V |
| Dimming | TRIAC |
| Beam Angle | 20°–50° (Adjustable) |
| Rated Life | 50,000 hours |
| IP Rating | IP40 |
| Finish | White |
