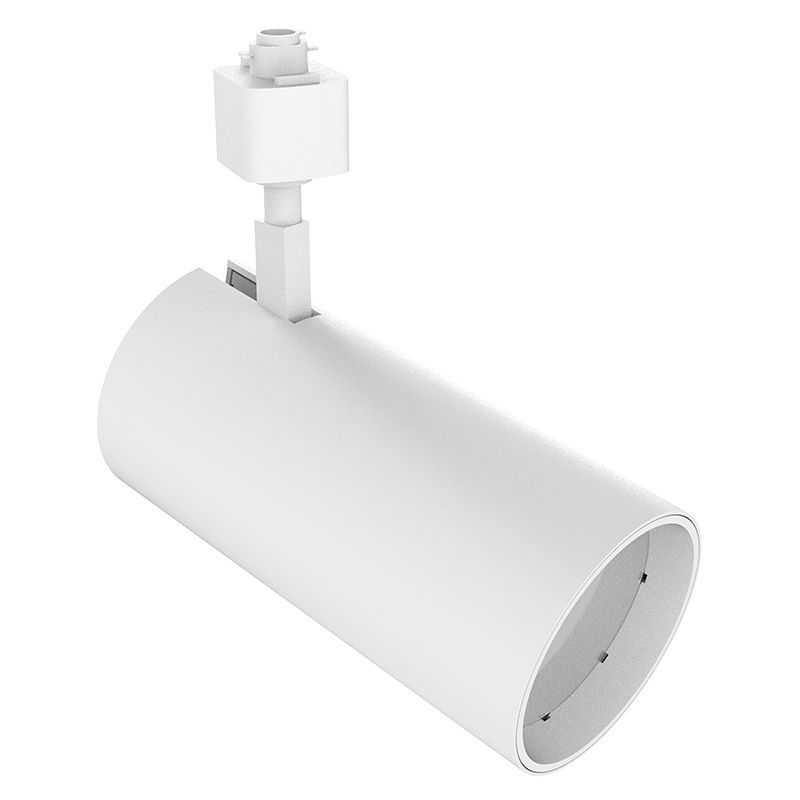

Westgate Mfg Standard Track Head, 10/15/20W, CCT Selectable, CRI90, 36°, White, TRS-10-20W-MCTP-36D-WH
- ROCK SKU: WES-TRS-10-20W-MCTP-36D-WH
- UPC: 840378310666
- MFG Part #: TRS-10-20W-MCTP-36D-WH
$82.78
$73.74
The Westgate Mfg TRS-10-20W-MCTP-36D-WH is a standard LED track head with selectable 10/15/20W output, suited for accent and display lighting in retail, gallery, and commercial interior applications on 120V track systems. Five CCT options (2700K–5000K) and CRI >90 are field-selectable, while a fixed 36° beam angle and triac dimming deliver precise optical and control performance. ETL listed, IP40 rated, aluminum construction in white finish, with a 50,000-hour rated life and 5-year warranty.
| Watts | 10/15/20W (Field-Adjustable) |
| Lumens | 900–1,800 lm |
| Color Temperature | CCT Selectable (2700K/3000K/3500K/4000K/5000K) |
| CRI | 90 |
| Voltage | 120V |
| Dimming | TRIAC |
| Beam Angle | 36° |
| Rated Life | 50,000 hours |
| IP Rating | IP40 |
| Finish | White |
