/ Westgate Mfg Shoji Window Sconce, 40/60/80W, CCT Selectable,...
Westgate Mfg Shoji Window Sconce, 40/60/80W, CCT Selectable, 120-277V, TRIAC & 0-10V Dimming, Oil-Rubbed Bronze, LRS-SH-40-MCTP-DD-ORB
- ROCK SKU: WES-LRS-SH-40-MCTP-DD-ORB
- UPC: 840378329293
- MFG Part #: LRS-SH-40-MCTP-DD-ORB
$230.78
$204.74

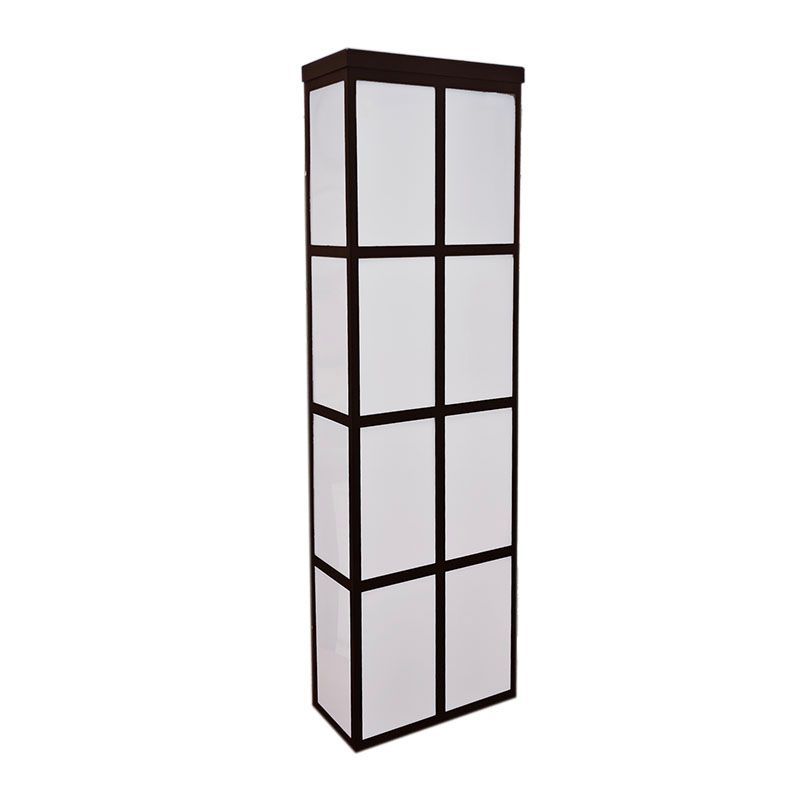

The Westgate Mfg LRS-SH-40-MCTP-DD-ORB is a 40×13-inch LED Shoji Window Sconce available in 40W, 60W, or 80W selectable configurations, designed for large-format commercial and hospitality facade wall-mount applications. It features 3-CCT selection (3000K/4000K/5000K) with both TRIAC and 0-10V dimming on a universal 120–277V input, delivering 70 lm/W at CRI >80. ETL listed, IP42 rated, and backed by a 7-year warranty with a 50,000-hour rated life in an oil-rubbed bronze finish.
| Watts | 40/60/80W (Field-Adjustable) |
| Lumens | 2,800–5,600 lm |
| Color Temperature | CCT Selectable (3000K/4000K/5000K) |
| Voltage | 120–277V |
| CRI | 80+ |
| Dimming | TRIAC & 0-10V |
| Rated Life | 50,000 hr |
| IP Rating | IP42 |
| Finish | Oil-Rubbed Bronze |
| Warranty | 7 Years |
