Westgate Mfg SCX4 Linear Inside Corner Section, CCT Selectable, 0-10V Dimmable, 120-277V, IP54, SCX4-IC-MCT4
- ROCK SKU: WES-SCX4-IC-MCT4
- UPC: 845060057164
- MFG Part #: SCX4-IC-MCT4
$90.78
$80.74

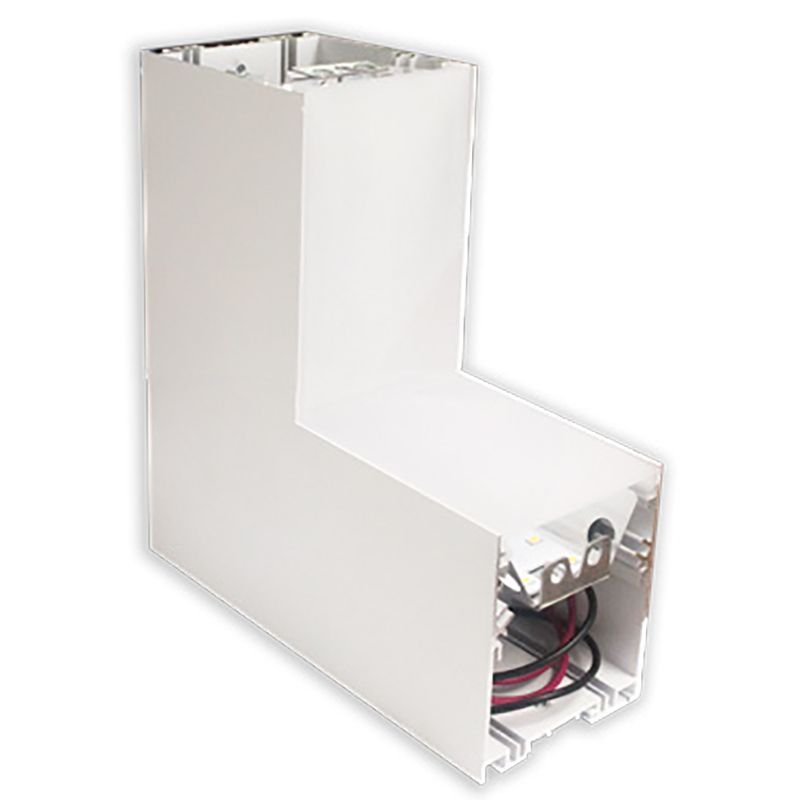

The Westgate Mfg SCX4-IC-MCT4 is a 4-inch linear inside corner section for the SCX4 continuous-run system, used to navigate 90-degree interior corners in commercial corridor, retail, and office installations. It features CCT-selectable output (3000K/3500K/4000K/5000K) with 0–10V dimming on 120–277V, IP54-rated aluminum housing with opal polycarbonate lens, CRI >80, power factor >0.95, and a 50,000-hour rated life. UL listed with a 5-year warranty.
| Color Temperature | CCT Selectable (3000K/3500K/4000K/5000K) |
| CRI | 80+ |
| Voltage | 120-277V |
| Dimming | 0-10V |
| IP Rating | IP54 |
| Material | Aluminum Housing |
| Lens | Opal Polycarbonate |
| Rated Life | 50,000 hr |
| Warranty | 5 Years |
| Listing | UL |
