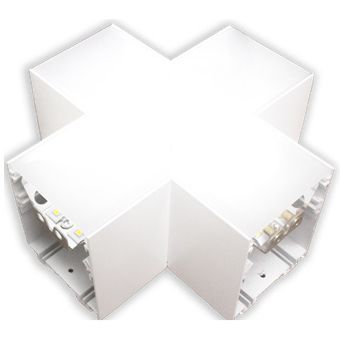

Westgate Mfg SCX Series X Section, 2.75 In., CCT Selectable, 0-10V Dimmable, White, SCX-X-MCT4
- ROCK SKU: WES-SCX-X-MCT4
- UPC: 845060056877
- MFG Part #: SCX-X-MCT4
$85.78
$75.74
The Westgate Mfg SCX-X-MCT4 is a 2.75-inch SCX Series X-section connector for continuous-run linear LED layouts in commercial and architectural environments, finished in white. It features field-selectable CCT (3000K/3500K/4000K/5000K) with 0–10V dimming and an IP54-rated aluminum housing with opal polycarbonate lens, operating on 120–277V. UL listed with CRI >80, power factor >0.95, and a 50,000-hour rated lifespan. 5-year warranty.
| Color Temperature | CCT Selectable (3000K/3500K/4000K/5000K) |
| CRI | >80 |
| Voltage | 120-277V |
| Dimming | 0-10V Dimmable |
| Rated Life | 50,000 hr |
| IP Rating | IP54 |
| Finish | White |
| Listing | UL |
