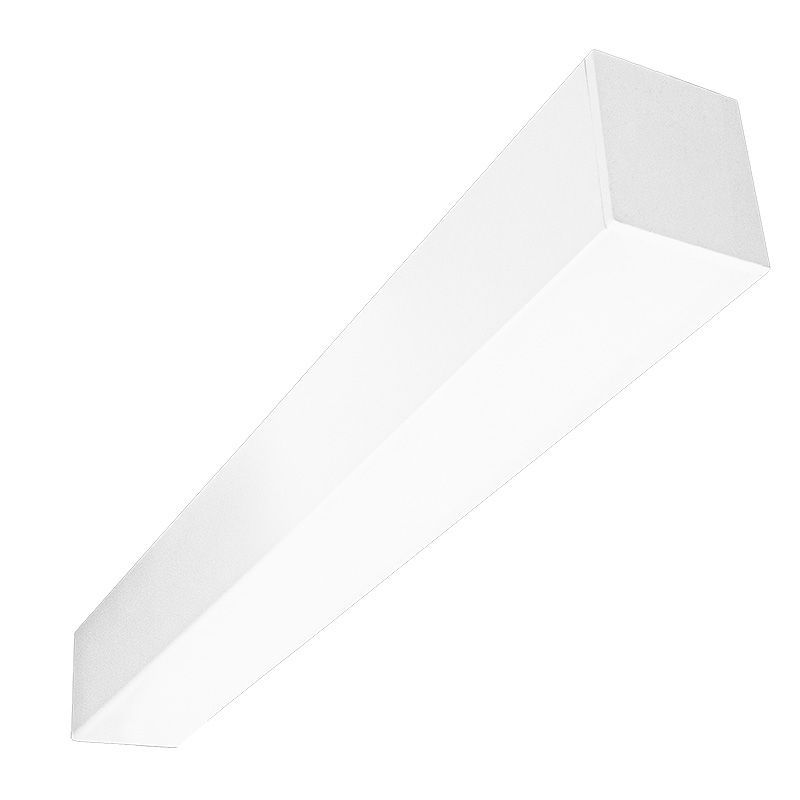

Westgate Mfg SCX 6 In. 3 Ft. Linear, 30/38/45W, CCT Selectable, 0-10V Dimmable, Linkable, SCX6-3FT-30-45W-MCTP
- ROCK SKU: WES-SCX6-3FT-30-45W-MCTP
- UPC: 845060078503
- MFG Part #: SCX6-3FT-30-45W-MCTP
$412.78
$365.74
The Westgate Mfg SCX6-3FT-30-45W-MCTP is a 6-inch wide, 3-foot linkable LED linear fixture rated at 30/38/45W, designed for commercial and industrial applications where scalable linear lighting runs are required. Outputting 110 lm/W with field-selectable 30K/35K/40K/50K CCT and 0–10V dimming across 120–277VAC, it is UL and DLC listed to support utility rebate programs. The aluminum housing with opal polycarbonate lens achieves an IP54 rating and a 50,000-hour rated life, backed by a 5-year warranty.
| Watts | 30/38/45W (Field-Adjustable) |
| Lumens | 3,300–4,950 lm |
| Color Temperature | CCT Selectable (3000K/3500K/4000K/5000K) |
| Voltage | 120-277V |
| Dimming | 0-10V Dimmable |
| CRI | >80 |
| Rated Life | 50,000 hrs |
| IP Rating | IP54 |
| Listings | UL, DLC |
