Westgate Mfg SCX 6 In. 2 Ft. Linear, 20/25/30W, CCT Selectable, 0-10V Dimmable, Linkable, SCX6-2FT-20-30W-MCTP
- ROCK SKU: WES-SCX6-2FT-20-30W-MCTP
- UPC: 845060078497
- MFG Part #: SCX6-2FT-20-30W-MCTP
$377.78
$334.74

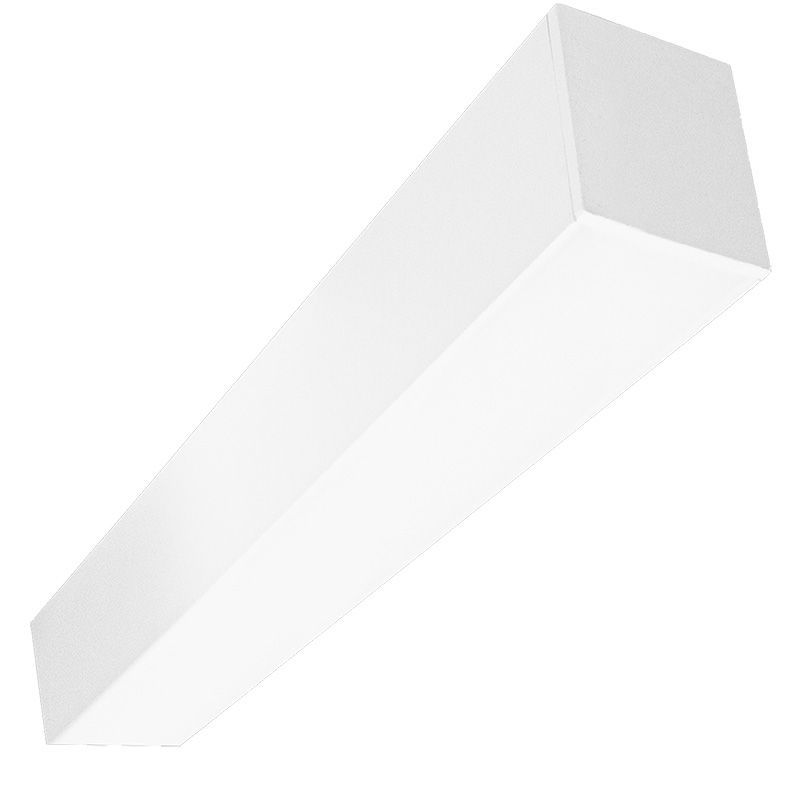

The Westgate Mfg SCX6-2FT-20-30W-MCTP is a 6-inch wide, 2-foot linkable LED linear fixture rated at 20/25/30W, suited for commercial corridors, retail spaces, and office environments requiring flexible run configurations. Delivering 110 lm/W with field-selectable 30K/35K/40K/50K CCT and 0–10V dimming on 120–277VAC, it carries UL and DLC listings for rebate eligibility. The aluminum housing with opal polycarbonate lens is IP54-rated with a 50,000-hour rated life and 5-year warranty.
| Watts | 20/25/30W (Field-Adjustable) |
| Lumens | 2,200–3,300 lm |
| Color Temperature | CCT Selectable (3000K/3500K/4000K/5000K) |
| Voltage | 120-277V |
| Dimming | 0-10V Dimmable |
| CRI | >80 |
| Rated Life | 50,000 hrs |
| IP Rating | IP54 |
| Listings | UL, DLC |
