/ Westgate Mfg SCX, 20W, CCT Selectable, 0-10V Dimmable,...
Westgate Mfg SCX, 20W, CCT Selectable, 0-10V Dimmable, 2x2 Ft., White, SCX-2X2-20W-MCT4-D-DIP
- ROCK SKU: WES-SCX-2X2-20W-MCT4-D-DIP
- UPC: 840378302036
- MFG Part #: SCX-2X2-20W-MCT4-D-DIP
$349.78
$309.74

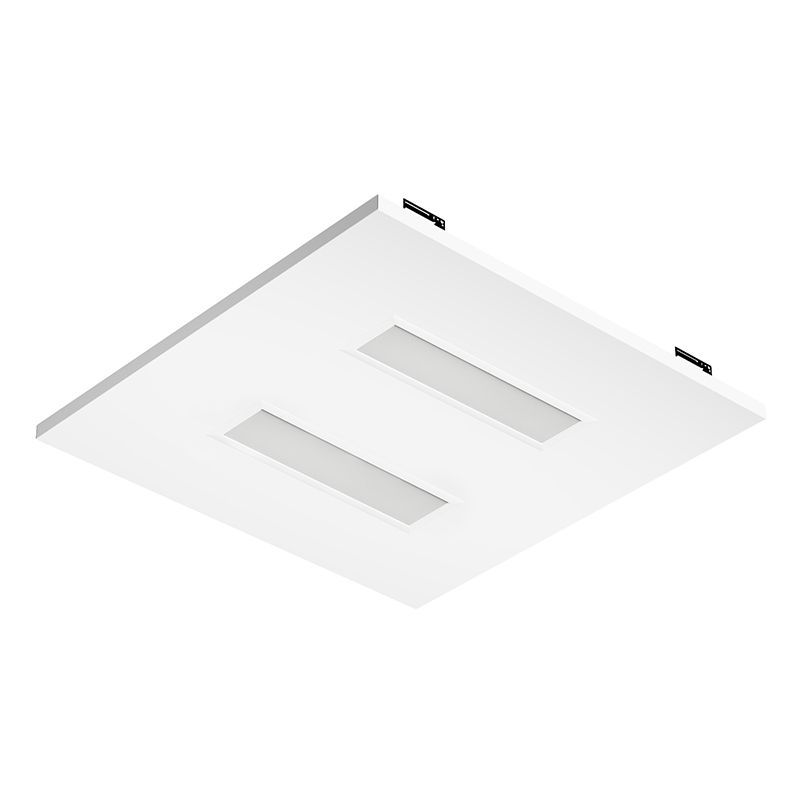

The Westgate Mfg SCX-2X2-20W-MCT4-D-DIP is a 20W 2×2 ft. SCX LED linear panel fixture for commercial lay-in and surface-mount ceiling installations. It delivers 110 LM/W efficacy with dip-switch CCT selection (30K/35K/40K/50K) and 0–10V dimming on 120–277VAC. The aluminum housing with polycarbonate lens is IP54 rated, UL listed, CRI >80, and rated for 50,000 hours backed by a 5-year warranty. White finish.
| Watts | 20W |
| Lumens | 2,200 lm |
| Color Temperature | CCT Selectable (3000K/3500K/4000K/5000K) |
| CRI | >80 |
| Dimming | 0-10V |
| IP Rating | IP54 |
| Finish | White |
| Rated Life | 50,000 hours |
| Listings | UL |
| Warranty | 5 years |
