Westgate Mfg Premium 2X2 Retrofit Troffer, 15/20/25W, CCT Selectable, 0-10V, White, LRT-HL-2X2-MCTP
- ROCK SKU: WES-LRT-HL-2X2-MCTP
- UPC: 845060046960
- MFG Part #: LRT-HL-2X2-MCTP
$77.78
$68.74

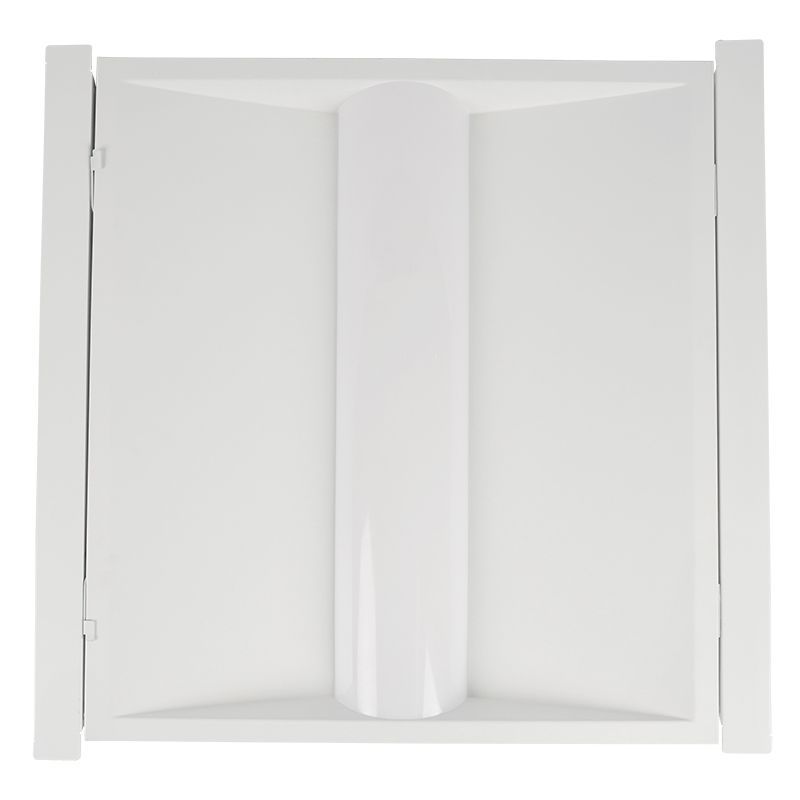

The Westgate Mfg LRT-HL-2X2-MCTP is a premium 2×2 LED retrofit troffer designed for drop-in replacement of existing 2×2 fluorescent troffers in commercial, office, and institutional settings. Featuring field-selectable wattage (15/20/25W) and CCT (3500K/4000K/5000K) at 125 lm/W efficacy, it delivers flexible specification with 0–10V dimming, CRI >80, and a 50,000-hour rated life on 120–277V. UL and DLC listed with IP40 rating, polycarbonate lens, and a 5-year warranty.
| Watts | 15/20/25W (Field-Adjustable) |
| Lumens | 1,875–3,125 lm (125 lm/W) |
| Color Temperature | CCT Selectable (3500K/4000K/5000K) |
| CRI | 80+ |
| Voltage | 120-277V |
| Dimming | 0-10V Dimming |
| Rated Life | 50,000 hr |
| IP Rating | IP40 |
| Finish | White |
| Listing | UL, DLC |
