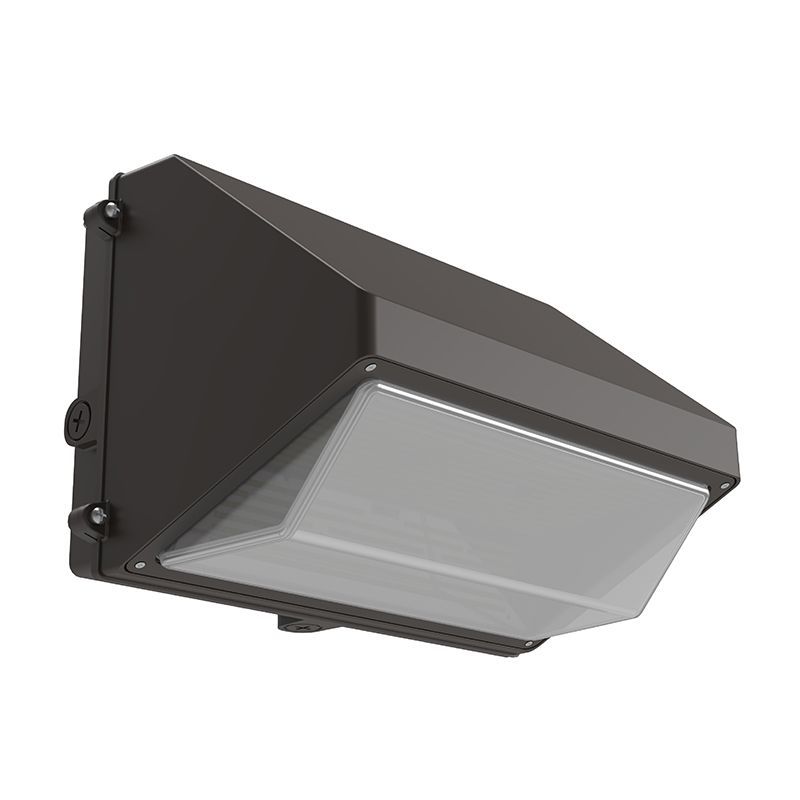

Westgate Mfg LWPMAX Large Cut-Off Wall Pack, 100/120/150W, CCT Selectable, 0-10V, Photocell, Bronze, LWPMAX-LG-100-150W-MCTPB-P
- ROCK SKU: WES-LWPMAX-LG-100-150W-MCTPB-P
- UPC: 840378323093
- MFG Part #: LWPMAX-LG-100-150W-MCTPB-P
$212.78
$188.74
The Westgate Mfg LWPMAX-LG-100-150W-MCTPB-P is a large cut-off LED wall pack rated at 100/120/150W designed for commercial building perimeters, parking structures, and industrial exteriors requiring high-output security lighting. Delivering 135 lm/W via Lumileds 2835 LEDs with field-selectable CCT (3000K/4000K/5000K) and three beam distributions, it offers installation flexibility across diverse facade applications. Built-in photocell, 0–10V dimming, IP65-rated PC and aluminum construction, and a 7-year warranty back this UL and DLC Premium listed fixture on 120–277V. Bronze finish.
| Watts | 100/120/150W (Field-Adjustable) |
| Lumens | 13,500–20,250 lm |
| Color Temperature | CCT Selectable (3000K/4000K/5000K) |
| Voltage | 120–277V AC |
| Dimming | 0–10V Dimmable |
| IP Rating | IP65 |
| Finish | Bronze |
| Rated Life | 50,000 hrs |
| Listings | UL, DLC Premium |
| Warranty | 7 Years |
