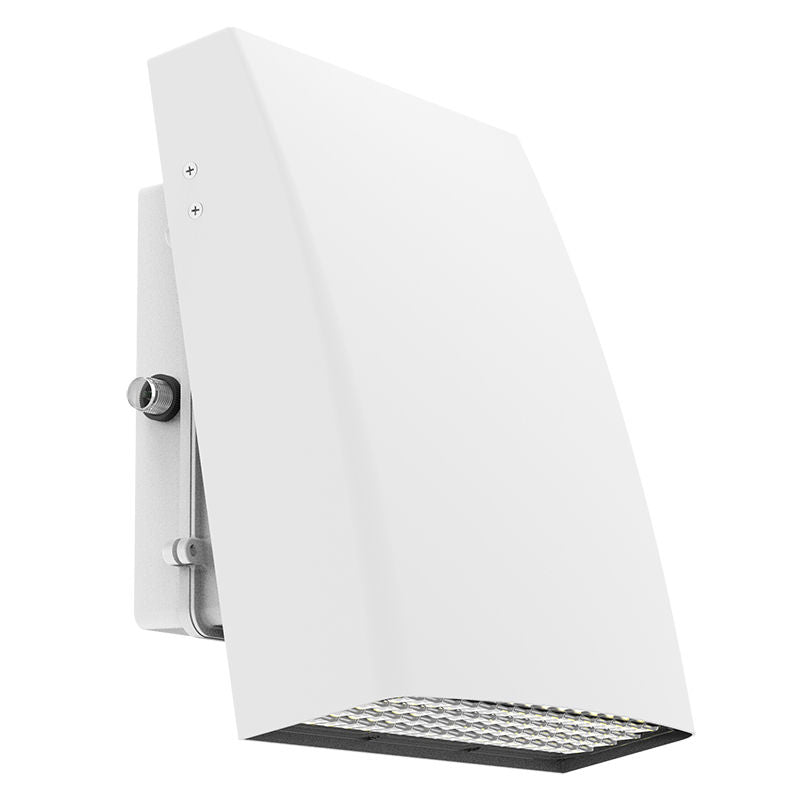

Westgate Mfg LWAX Large Adjustable Cut-Off Wall Pack, 50/80/120W, CCT Selectable, 0-10V, Photocell, White, LWAX-LG-50-120W-MCTP-P-WH
- ROCK SKU: WES-LWAX-LG-50-120W-MCTP-P-WH
- UPC: 840378311960
- MFG Part #: LWAX-LG-50-120W-MCTP-P-WH
$230.78
$204.74
The Westgate Mfg LWAX-LG-50-120W-MCTP-P-WH is a large-housing adjustable cut-off LED wall pack designed for commercial building perimeters, parking structures, and outdoor security lighting in white finish. Field-selectable wattage of 50/80/120W delivers up to 130 lm/W with four CCT options (3000K–5700K) and 0-10V dimming for flexible control across installations. UL listed and DLC Premium qualified with an integrated photocell, IP65 rating, and a 7-year warranty on 120–277V.
| Watts | 50/80/120W (Field-Adjustable) |
| Lumens | 6,500–15,600 lm |
| Color Temperature | CCT Selectable (3000K/4000K/5000K/5700K) |
| Voltage | 120-277V |
| Dimming | 0-10V Dimmable |
| IP Rating | IP65 |
| Rated Life | 50,000 hr |
| Finish | White |
| Listings | UL, DLC Premium |
| Warranty | 7 Years |
