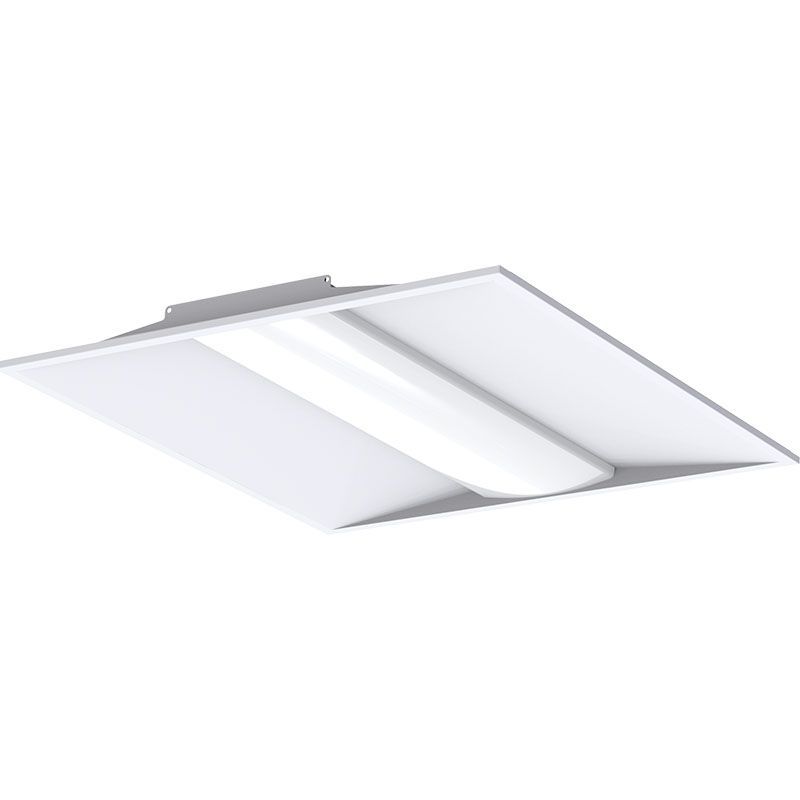

Westgate Mfg LTRS 2X2 Stack Troffer, 25/35/36/40W, CCT Selectable, 0-10V Dimming, Matt White, LTRS-2X2-MCTP
- ROCK SKU: WES-LTRS-2X2-MCTP
- UPC: 845060087093
- MFG Part #: LTRS-2X2-MCTP
Contact us for pricing
The Westgate Mfg LTRS-2X2-MCTP is a 2x2 stack LED troffer built for commercial grid ceiling installations in offices, retail, and educational environments. Selectable wattage of 25/35/36/40W achieves up to 125 LM/W with field-selectable CCT (3500K/4000K/5000K) and 0–10V dimming, consolidating multiple configurations into a single stocked SKU. UL listed; IP40 rated, SanAn LED chips, 50,000-hour rated life, and 5-year warranty on 120–277V.
| Watts | 25W / 35W / 36W / 40W (Field-Adjustable) |
| Lumens | 3,125–5,000 lm |
| Color Temperature | CCT Selectable (3500K / 4000K / 5000K) |
| CRI | >80 |
| Voltage | 120–277V |
| Dimming | 0–10V |
| Rated Life | 50,000 hr |
| IP Rating | IP40 |
| Listing | UL |
| Finish | Matt White |
