Westgate Mfg LLHB 90/135/180W, 5000K, 0-10V Dimmable, 480V, Sensor-Ready, White, LLHB-90-180W-MP-50K-D-SR-480V
- ROCK SKU: WES-LLHB-90-180W-MP-50K-D-SR-480V
- UPC: 840378321570
- MFG Part #: LLHB-90-180W-MP-50K-D-SR-480V
$406.78
$360.74

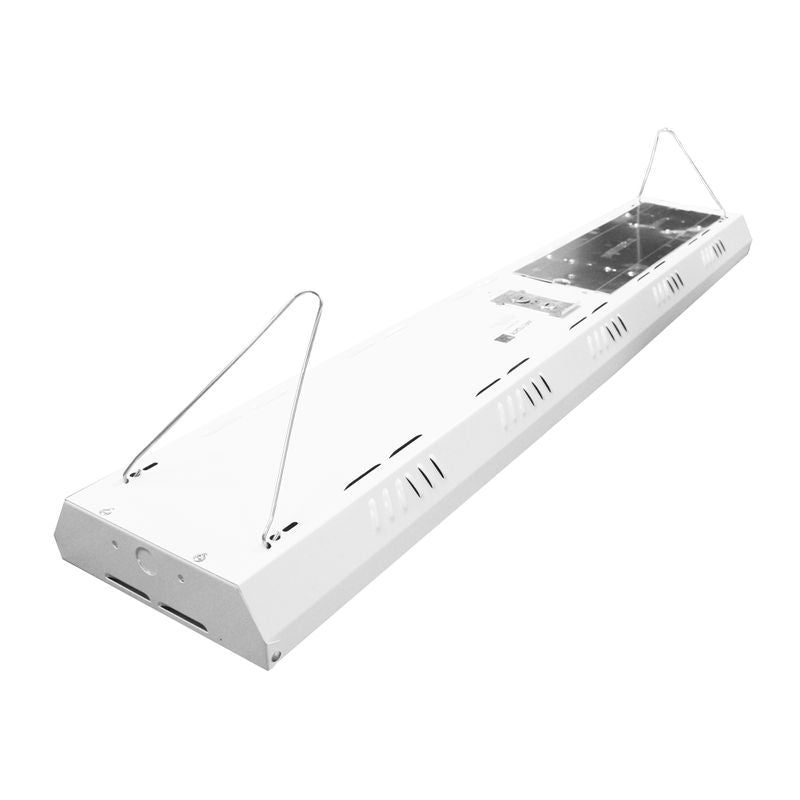

The Westgate Mfg LLHB-90-180W-MP-50K-D-SR-480V is a 4-foot LED linear high bay engineered for warehouses, manufacturing plants, and industrial applications on 480V electrical systems. Field-selectable between 90W, 135W, or 180W at 135 lm/W efficacy, it delivers crisp 5000K daylight output with 0–10V dimming and an integrated sensor-ready port for occupancy or photocell control. UL listed for damp locations with a steel housing, clear PMMA lens, and a 50,000-hour rated life.
| Watts | 90W/135W/180W (Field-Adjustable) |
| Lumens | 12,150–24,300 lm |
| Color Temperature | 5000K |
| Voltage | 480V |
| Dimming | 0-10V Dimmable |
| CRI | >80 |
| Rated Life | 50,000 hours |
| IP Rating | Damp Location |
| Finish | White |
| Listing | UL |
