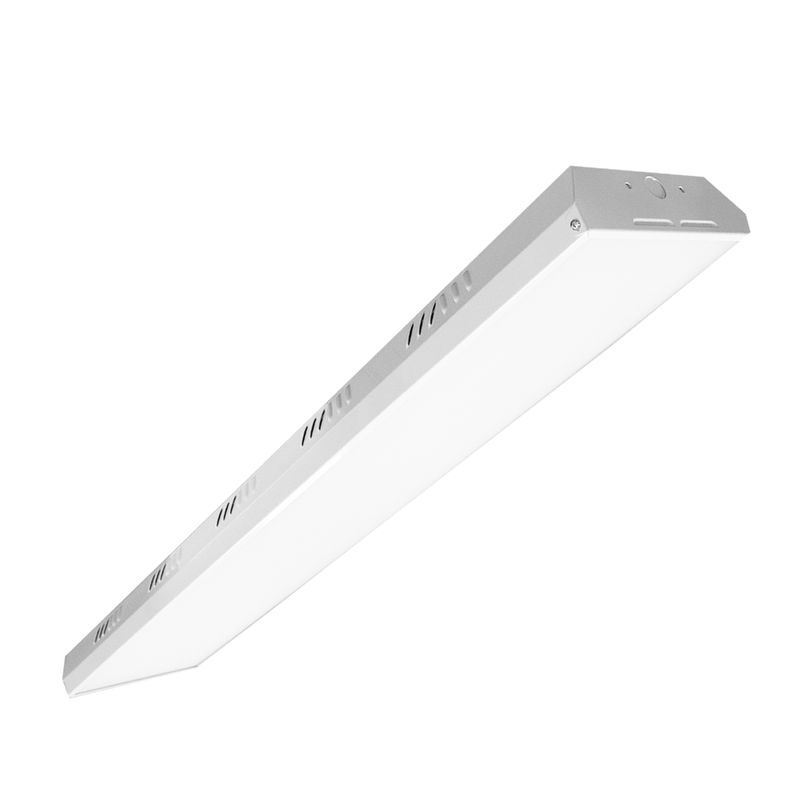

Westgate Mfg LLHB 90/135/180W, 4000K, 0-10V Dimmable, Sensor-Ready, White, LLHB-90-180W-MP-40K-D-SR
- ROCK SKU: WES-LLHB-90-180W-MP-40K-D-SR
- UPC: 840378321501
- MFG Part #: LLHB-90-180W-MP-40K-D-SR
$201.78
$178.74
The Westgate Mfg LLHB-90-180W-MP-40K-D-SR is a 4-foot LED linear high bay suited for warehouses, distribution centers, and industrial facilities on standard 120–277VAC systems. The multi-power driver selects between 90W, 135W, or 180W at 135 lm/W efficacy at 4000K, with 0–10V dimming and a sensor-ready port for occupancy or daylight harvesting controls. UL listed for damp locations with a steel housing, clear PMMA lens, and a 50,000-hour rated life across -40°F to 122°F.
| Watts | 90W/135W/180W (Field-Adjustable) |
| Lumens | 12,150–24,300 lm |
| Color Temperature | 4000K |
| Voltage | 120-277V |
| Dimming | 0-10V Dimmable |
| CRI | >80 |
| Rated Life | 50,000 hours |
| IP Rating | Damp Location |
| Finish | White |
| Listing | UL |
