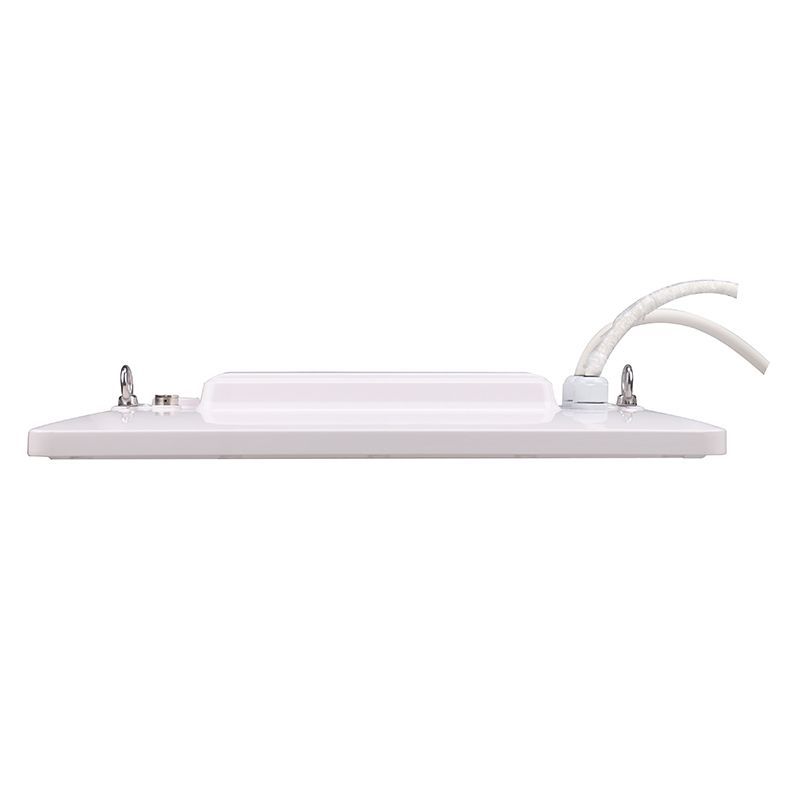

Westgate Mfg Linear High Bay, 60/85/105W, CCT Selectable, 0-10V Dimming, IP69K, White, LLHBF-60-105W-MCTP-SR
- ROCK SKU: WES-LLHBF-60-105W-MCTP-SR
- UPC: 840378325769
- MFG Part #: LLHBF-60-105W-MCTP-SR
$247.78
$219.74
The Westgate Mfg LLHBF-60-105W-MCTP-SR is a 60/85/105W selectable-wattage NSF-listed linear high bay suited for food processing facilities, commercial kitchens, and wet industrial environments where high-pressure washdown is routine. The fixture delivers 150 lm/W with field-selectable 4000K, 4500K, or 5000K CCT, 0-10V dimming, and a sensor-ready port for occupancy or daylight controls. Rated IP69K and powered from 100–277V, it uses Lumileds 3030 LEDs and holds UL and NSF certifications with a 5-year warranty.
| Watts | 60/85/105W (Field-Adjustable) |
| Lumens | 9,000–15,750 lm |
| Color Temperature | CCT Selectable (4000K/4500K/5000K) |
| Voltage | 100-277V |
| Dimming | 0-10V |
| IP Rating | IP69K |
| Rated Life | 50,000 hours |
| Finish | White |
| Listings | UL, NSF |
