Westgate Mfg Linear Corner Corridor, 2 ft, 10/15/20W, CCT Selectable, 0-10V, Emergency and Bilevel Sensor, White, LCL-2FT-20W-MCTP-EM-SEN
- ROCK SKU: WES-LCL-2FT-20W-MCTP-EM-SEN
- UPC: 840378312202
- MFG Part #: LCL-2FT-20W-MCTP-EM-SEN
$201.78
$178.74

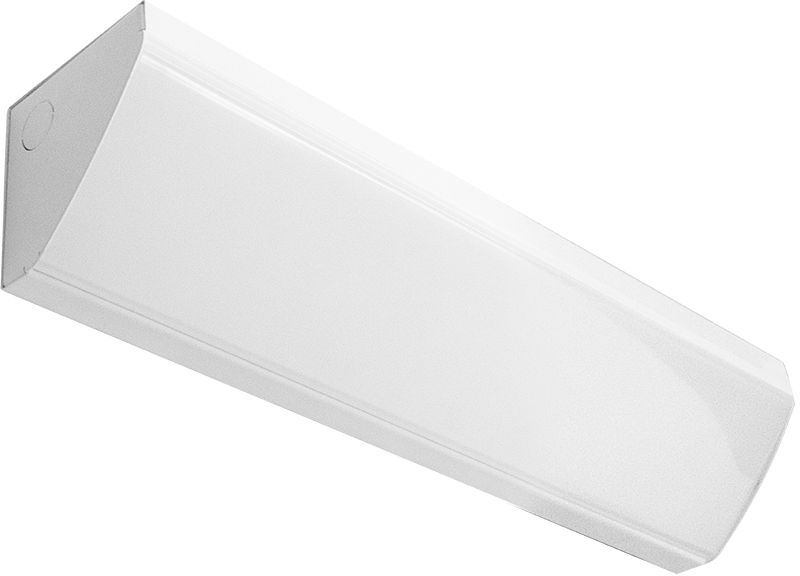

The Westgate Mfg LCL-2FT-20W-MCTP-EM-SEN is a 2 ft LED linear corner corridor fixture with selectable 10/15/20W output and integrated emergency backup and bilevel occupancy sensor, suited for hallways, stairwells, and egress corridors. CCT is field-selectable among 3500K, 4000K, and 5000K, with 0–10V dimming on 120–277V, delivering 115 lm/W through an opal lens for even distribution. UL listed with CRI 80, IP20 rating, and a 50,000-hour rated life on a steel white housing.
| Watts | 10/15/20W (Field-Adjustable) |
| Lumens | 1,150–2,300 lm |
| Color Temperature | CCT Selectable (3500K/4000K/5000K) |
| CRI | 80 |
| Voltage | 120-277V |
| Dimming | 0-10V |
| Rated Life | 50,000 hours |
| IP Rating | IP20 |
| Finish | White |
