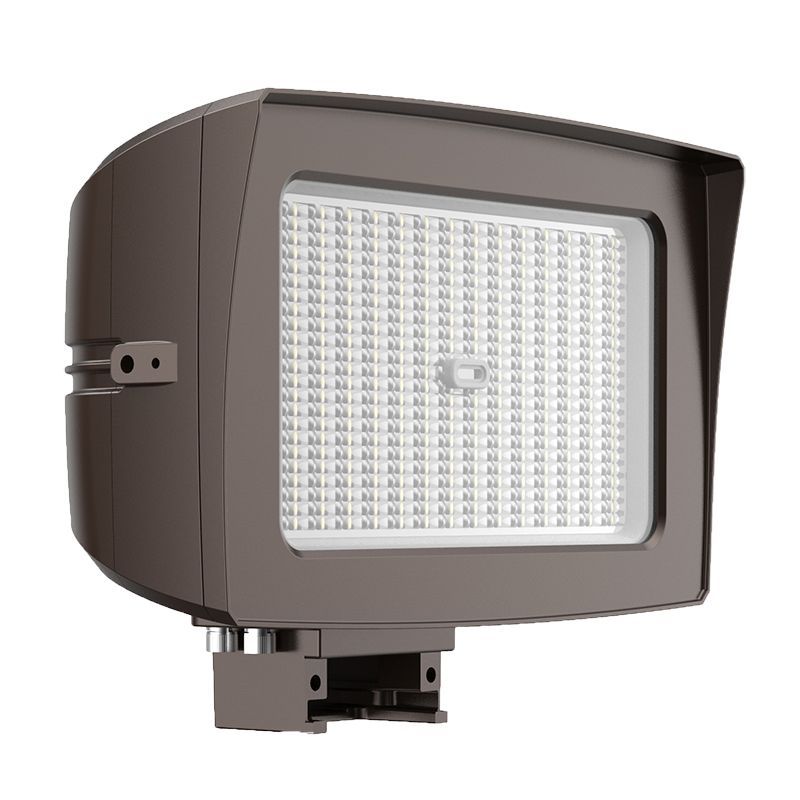

Westgate Mfg LF4 MAX Flood Light, 75/100/150W, CCT Selectable, 0-10V Dimmable, 480V, Photocell, Bronze, LF4MAX-LG-150W-MCTPB-P-480V
- ROCK SKU: WES-LF4MAX-LG-150W-MCTPB-P-480V
- UPC: 840378325844
- MFG Part #: LF4MAX-LG-150W-MCTPB-P-480V
$220.78
$195.74
The Westgate Mfg LF4MAX-LG-150W-MCTPB-P-480V is a 75/100/150W wattage-selectable LED flood light engineered for commercial and industrial exterior applications on 480V systems with an integrated photocell for automatic dusk-to-dawn operation. Powered by Lumileds 2835 LEDs at 140 lm/W efficiency with field-selectable 3000K/4000K/5000K CCT, digital beam angle adjustment (7H7V/6H6V/5H5V), and 0–10V dimming, it carries UL and DLC Premium listings and an IP65 rating. Bronze aluminum and glass construction; BUG rating B3-U0-G2; 7-year warranty.
| Watts | 75/100/150W (Field-Adjustable) |
| Lumens | 10,500–21,000 lm |
| Color Temperature | CCT Selectable (3000K/4000K/5000K) |
| CRI | >80 |
| Voltage | 480V |
| Dimming | 0-10V |
| IP Rating | IP65 |
| Beam Angle | 7° × 7° / 6° × 6° / 5° × 5° |
| Finish | Bronze |
| Features | Photocell, BUG B3-U0-G2 |
