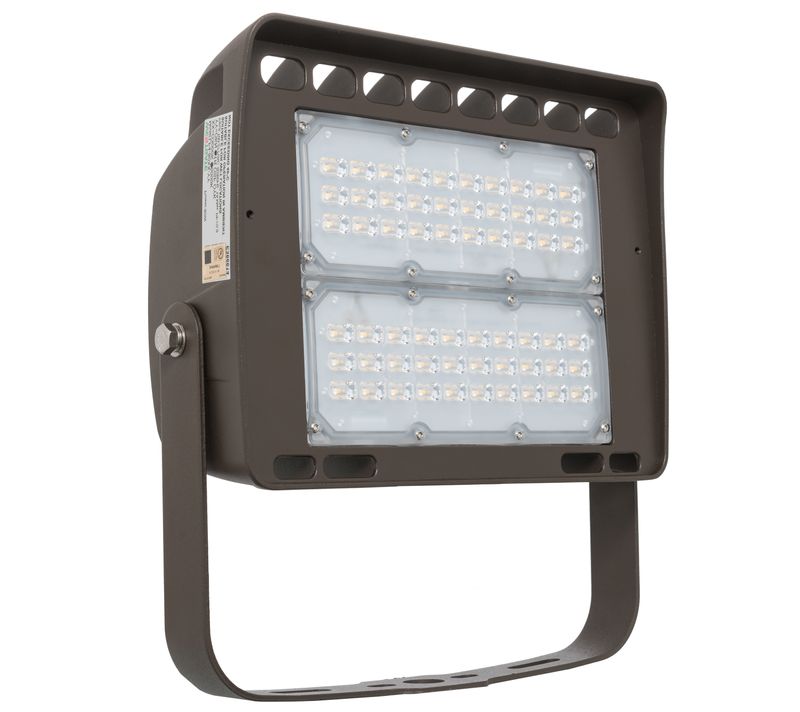

Westgate Mfg LF4 Architectural Flood Light, 80W, 5000K, 0-10V Dimmable, IP65, U-Bracket, Dark Bronze, LF4-80CW-TR
- ROCK SKU: WES-LF4-80CW-TR
- UPC: 845060004120
- MFG Part #: LF4-80CW-TR
$105.57
The Westgate Mfg LF4-80CW-TR is an 80W LED architectural flood light with an integral U-bracket mount, suited for facade illumination, signage uplighting, and commercial exterior applications on 120–277V. It delivers 9,500 lumens at 5000K through a Philips Lumileds Luxeon high-flux LED source with a Type II TIR optic lens for a 120°×90° beam pattern. 0–10V dimming, IP65-rated die-cast aluminum construction, UL and DLC listing, and a 70,000-hour rated life support specification-grade installations. Dark bronze powder coat finish; 7-year warranty.
| Watts | 80W |
| Lumens | 9,500 lm |
| Color Temperature | 5000K |
| CRI | 82–84 |
| Voltage | 120-277V |
| Dimming | 0-10V |
| IP Rating | IP65 |
| Beam Angle | 120° × 90° |
| Finish | Dark Bronze |
| Rated Life | 70,000 hrs |
| Mounting | U-Bracket |
