/ Westgate Mfg Inground Light, 9 In., 12/20/30W, CCT...
Westgate Mfg Inground Light, 9 In., 12/20/30W, CCT Selectable, 0-10V, 30°, IP68, Stainless Steel, IGLC-D9-30W-MCTP-120D-D
- ROCK SKU: WES-IGLC-D9-30W-MCTP-120D-D
- UPC: 840378326148
- MFG Part #: IGLC-D9-30W-MCTP-120D-D
$273.78
$242.74

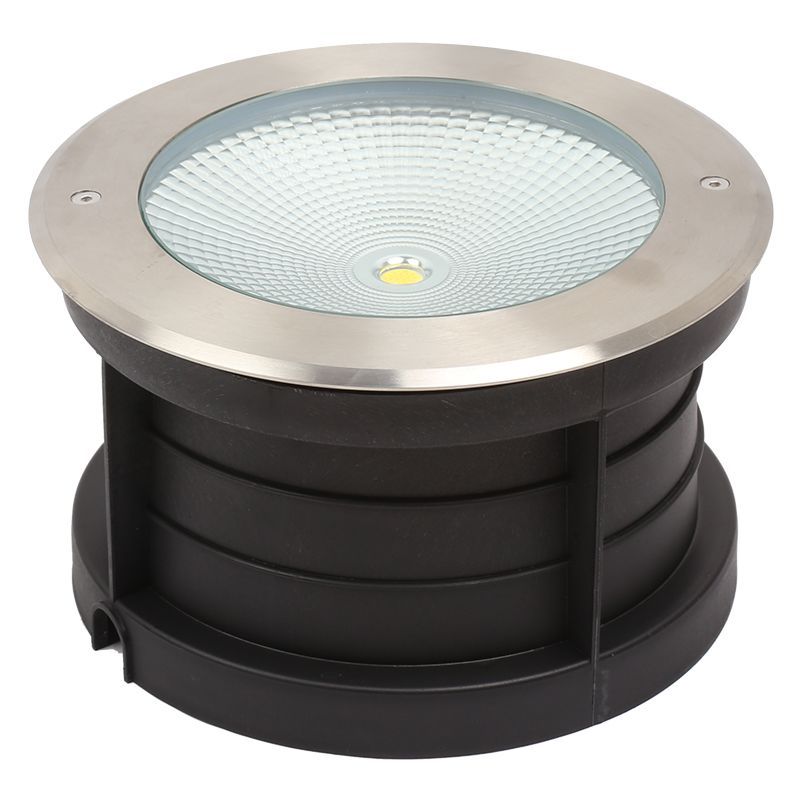

The Westgate Mfg IGLC-D9-30W-MCTP-120D-D is a 9-inch commercial LED inground light with selectable 12W, 20W, or 30W output and a wide 120° beam angle, suited for broad wash applications in plazas, walkways, and architectural landscape projects. It delivers 85 lm/W across switchable 3000K, 4000K, or 5000K CCT with 0-10V dimming on 100–277V, built with a die-cast aluminum body, 304 stainless steel cover, and clear tempered glass. IP68-rated for full submersion resistance with a 40,000-hour rated life. Backed by a 7-year warranty.
| Watts | 12/20/30W (Field-Adjustable) |
| Lumens | 1,020–2,550 lm |
| Color Temperature | CCT Selectable (3000K/4000K/5000K) |
| CRI | 80 |
| Voltage | 100–277V AC |
| Dimming | 0–10V |
| Beam Angle | 30° |
| Rated Life | 40,000 hr |
| IP Rating | IP68 |
| Finish | Stainless Steel |
| Warranty | 7 Years |
