/ Westgate Mfg Half-Cylinder Wall Pack, 48/64/80W, CCT Selectable,...

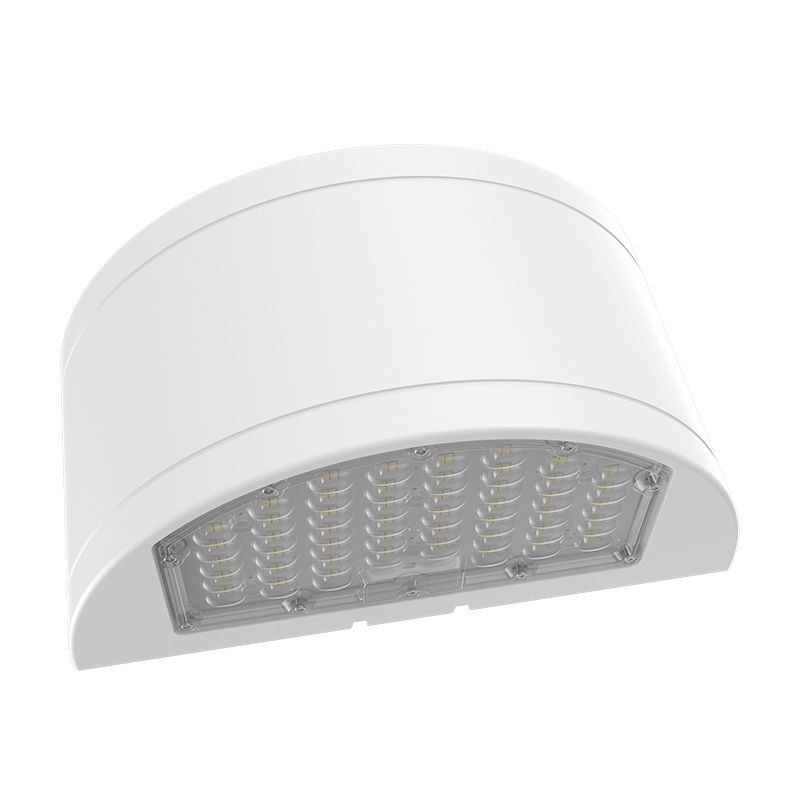

Westgate Mfg Half-Cylinder Wall Pack, 48/64/80W, CCT Selectable, 0-10V Dimming, Type III, White, WHCX-48-80W-MCTP-WH
- ROCK SKU: WES-WHCX-48-80W-MCTP-WH
- UPC: 840378322423
- MFG Part #: WHCX-48-80W-MCTP-WH
$288.78
$256.74
The Westgate Mfg WHCX-48-80W-MCTP-WH is a 48/64/80W selectable half-cylinder LED wall pack engineered for high-demand commercial and industrial perimeter lighting on building facades, loading docks, and parking areas. Delivering 145 lm/W efficacy with field-selectable CCT (3000K/4000K/5000K) and 0–10V dimming, it provides precise output and color control across installations. UL listed and DLC Premium qualified, the fixture features an IP65 rating, Bridgelux 2835 LEDs, integrated photocell, and a Type III distribution on 120–277V. White finish. 7-year warranty.
| Watts | 48/64/80W (Field-Adjustable) |
| Lumens | 6,960–11,600 lm |
| Color Temperature | CCT Selectable (3000K/4000K/5000K) |
| Voltage | 120-277V |
| Dimming | 0-10V |
| Beam Pattern | Type III |
| IP Rating | IP65 |
| Finish | White |
| Rated Life | 50,000+ hours |
| Listings | UL, DLC Premium |
