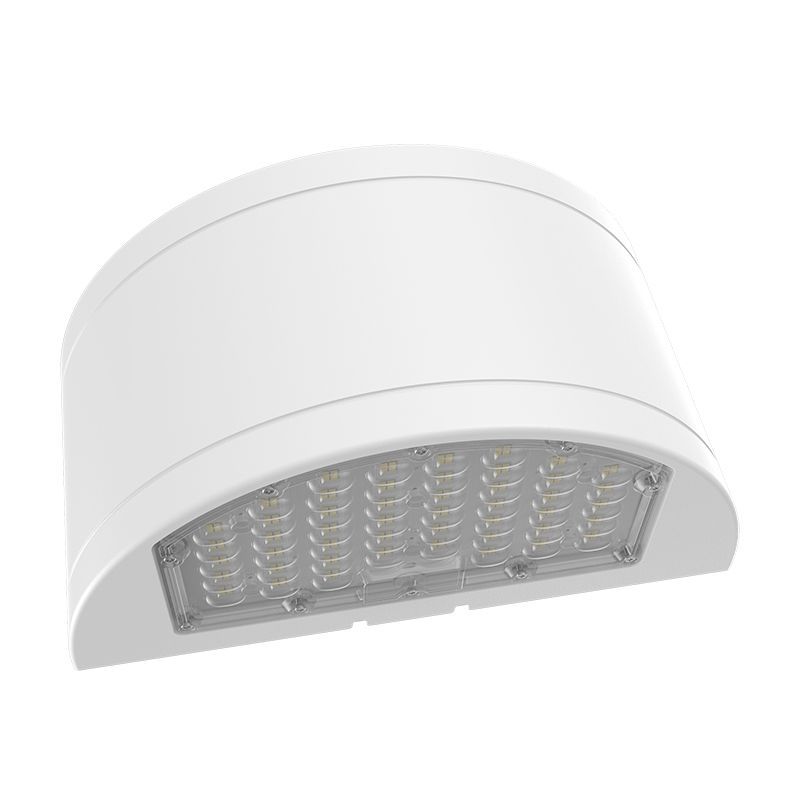

Westgate Mfg Half-Cylinder Wall Pack, 24/32/40W, CCT Selectable, 0-10V Dimming, Type III, White, WHCX-24-40W-MCTP-WH
- ROCK SKU: WES-WHCX-24-40W-MCTP-WH
- UPC: 840378322393
- MFG Part #: WHCX-24-40W-MCTP-WH
$274.78
$243.74
The Westgate Mfg WHCX-24-40W-MCTP-WH is a 24/32/40W selectable half-cylinder LED wall pack designed for commercial and industrial perimeter lighting on building facades, parking structures, and walkways. Delivering 145 lm/W efficacy with field-selectable CCT (3000K/4000K/5000K) and 0–10V dimming, it provides flexible output control to meet project requirements. UL listed and DLC Premium qualified, the fixture carries an IP65 rating, Bridgelux 2835 LEDs, integrated photocell, and a Type III distribution on 120–277V. White finish. 7-year warranty.
| Watts | 24/32/40W (Field-Adjustable) |
| Lumens | 3,480–5,800 lm |
| Color Temperature | CCT Selectable (3000K/4000K/5000K) |
| Voltage | 120-277V |
| Dimming | 0-10V |
| Beam Pattern | Type III |
| IP Rating | IP65 |
| Finish | White |
| Rated Life | 50,000+ hours |
| Listings | UL, DLC Premium |
