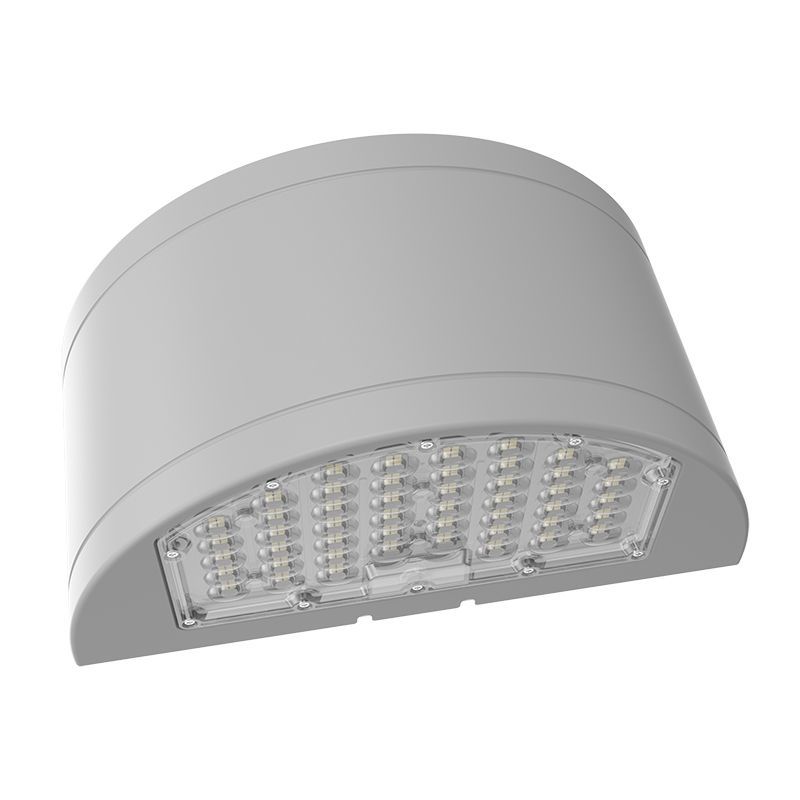

Westgate Mfg Half-Cylinder Wall Pack, 24/32/40W, CCT Selectable, 0–10V Dimming, Photocell, Type III, Silver, WHCX-24-40W-MCTP-SIL
- ROCK SKU: WES-WHCX-24-40W-MCTP-SIL
- UPC: 840378322409
- MFG Part #: WHCX-24-40W-MCTP-SIL
$274.78
$243.74
The Westgate Mfg WHCX-24-40W-MCTP-SIL is a half-cylinder LED wall pack for commercial and municipal exterior facade, pathway, and security lighting on 120–277V. Selectable wattage of 24/32/40W delivers up to 145 lm/W efficacy with three field-selectable CCTs (3000K/4000K/5000K), 0–10V dimming, and an integrated photocell for automatic dusk-to-dawn control. Rated IP65 with a Type III distribution, Bridgelux 2835 LEDs, and DLC Premium and UL listings. Silver finish aluminum housing with polycarbonate and glass lens; 7-year warranty.
| Watts | 24/32/40W (Field-Adjustable) |
| Lumens | 3,480–5,800 lm |
| Color Temperature | CCT Selectable (3000K/4000K/5000K) |
| Voltage | 120–277V |
| Dimming | 0–10V |
| Beam Angle | Type III |
| Rated Life | 50,000 hours |
| IP Rating | IP65 |
| Finish | Silver |
| Warranty | 7 years |
| Listing | UL, DLC Premium |
