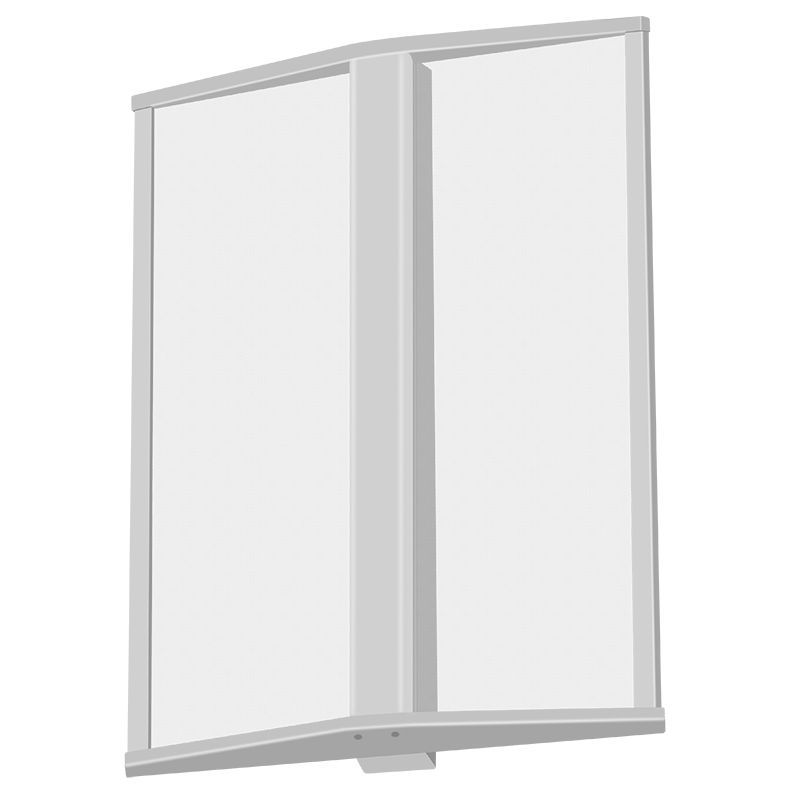

Westgate Mfg Commercial Wall Sconce, 12 In., 10/15/20W, CCT Selectable, CRI90, 0-10V, White, CWS-12-MCTP
- ROCK SKU: WES-CWS-12-MCTP
- UPC: 845060030938
- MFG Part #: CWS-12-MCTP
$164.78
$146.74
The Westgate Mfg CWS-12-MCTP is a 12-inch commercial LED wall sconce designed for corridor, lobby, and general commercial applications requiring field-selectable output and color temperature. The fixture offers 10/15/20W wattage selection with CCT options of 3000K, 3500K, or 4000K at 90 CRI and an efficiency of 85 lm/W, operating on 100–277V with 0-10V dimming. Constructed from aluminum and PMMA with a white finish, it delivers a 353.5° beam angle and is rated for 50,000 hours, backed by a 5-year warranty.
| Wattage | 10/15/20W (Field-Selectable) |
| Lumens | 850–1,700 lm |
| Color Temperature | CCT Selectable (3000K/3500K/4000K) |
| CRI | 90 |
| Voltage | 100-277V |
| Dimming | 0-10V |
| Finish | White |
| Rated Life | 50,000 hrs |
| Warranty | 5 Years |
