Westgate Mfg CMC4 Gimbal Cylinder, 12/16/20W, CCT Selectable, TRIAC & 0-10V, White, CMC4-GIM-MCTP-DD-WH

ROCK SKU: WES-CMC4-GIM-MCTP-DD-WH
UPC: 840378314695
MFG Part #: CMC4-GIM-MCTP-DD-WH

$131.78

$116.74

Spec Sheet

Estimated Lead Time: 0-2 weeks

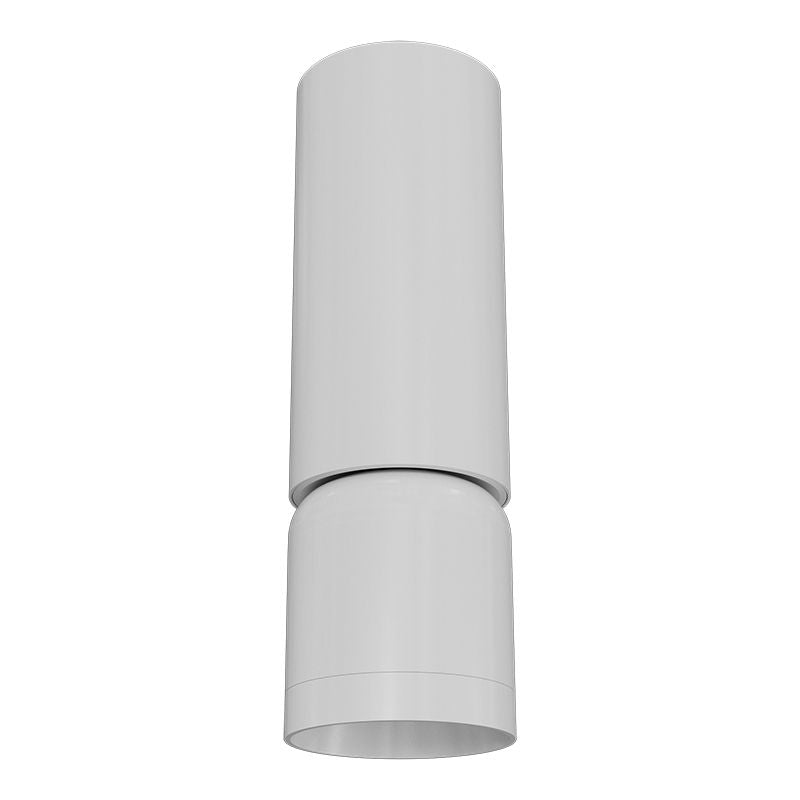

The Westgate Mfg CMC4-GIM-MCTP-DD-WH is a 4-inch gimbal-head LED cylinder rated at 12/16/20W for use in damp-location commercial and architectural ceiling applications. It delivers 80 lm/W across selectable 3000K/4000K/5000K CCT settings with a 45° beam angle, and supports both TRIAC and 0-10V dual dimming on 120–277V. ETL listed with a Hongli COB source, >80 CRI, and a 50,000-hour rated life; includes frost and clear lens options. White finish. 5-year warranty.

Watts	12/16/20W (Field-Adjustable)
Lumens	960–1,600 lm
Color Temperature	CCT Selectable (3000K/4000K/5000K)
CRI	80
Voltage	120–277V
Dimming	TRIAC & 0-10V
Beam Angle	45°
Rated Life	50,000 hours
IP Rating	IP20
Finish	White
