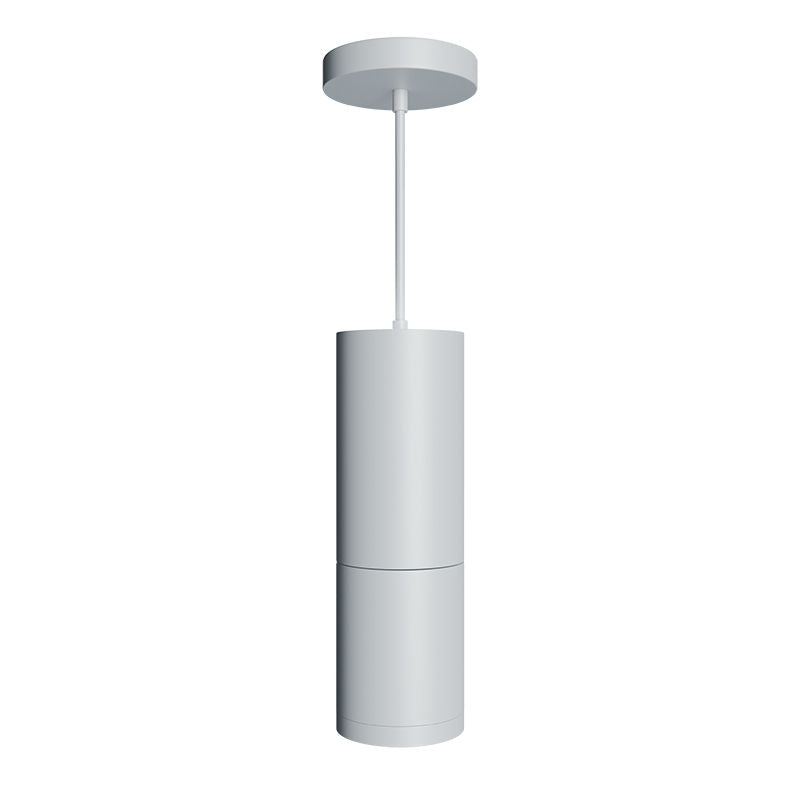

Westgate Mfg CMC4 Cylinder, 12/16/20W, CCT Selectable, TRIAC & 0-10V Dimming, White, CMC4-ADJ-MCTP-DD-WH
- ROCK SKU: WES-CMC4-ADJ-MCTP-DD-WH
- UPC: 840378314671
- MFG Part #: CMC4-ADJ-MCTP-DD-WH
$155.78
$137.74
The Westgate Mfg CMC4-ADJ-MCTP-DD-WH is a 4-inch adjustable tilt-head LED cylinder fixture suited for damp-location commercial and residential installations including retail, hospitality, and corridor environments. Selectable wattage of 12W/16W/20W combined with 3CCT switching (3000K/4000K/5000K) enables field configuration to meet varied project specifications. Dual dimming via TRIAC and 0-10V provides compatibility with a wide range of dimming controls; ETL listed for 120–277V operation. White finish with choice of frosted or clear glass lens; 50,000-hour rated life.
| Watts | 12/16/20W (Field-Adjustable) |
| Lumens | 960–1,600 lm |
| Color Temperature | CCT Selectable (3000K/4000K/5000K) |
| CRI | >80 |
| Voltage | 120–277V |
| Dimming | TRIAC & 0-10V |
| Rated Life | 50,000 hrs |
| IP Rating | IP20 |
| Finish | White |
| Listing | ETL |
