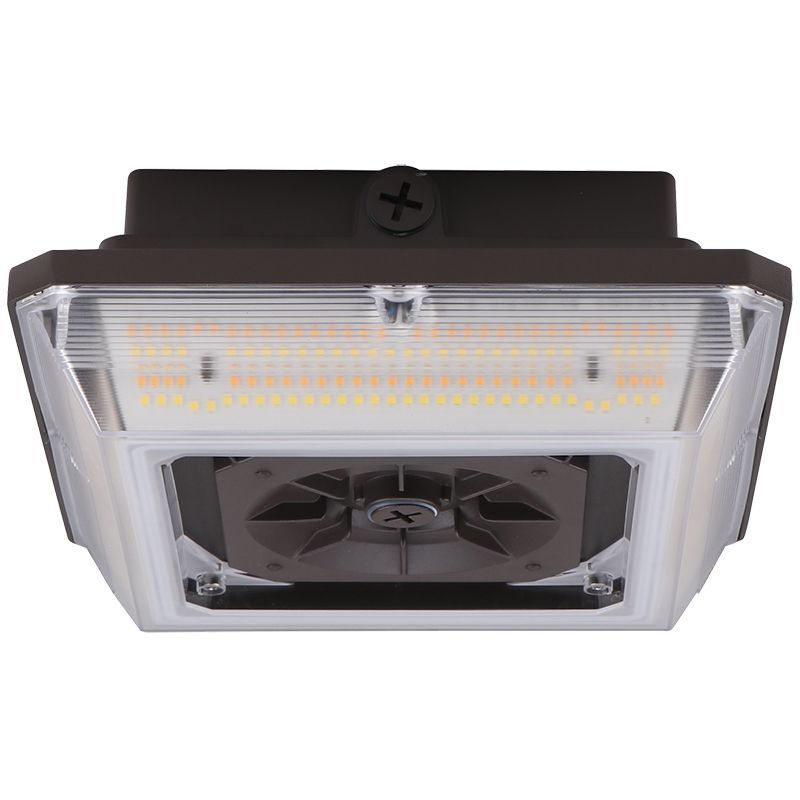

Westgate Mfg CAX Canopy Garage Light, Angled Beam, 30/45/60W, CCT Selectable, 0-10V, White, CAX-30-60W-MCTP-SR
- ROCK SKU: WES-CAX-30-60W-MCTP-SR
- UPC: 845060050615
- MFG Part #: CAX-30-60W-MCTP-SR
$153.78
$136.74
The Westgate Mfg CAX-30-60W-MCTP-SR is a selectable 30/45/60W LED canopy and garage light with an angled 135×45° beam pattern suited for gas station canopies, parking structures, and covered commercial entries. Delivering 140 lm/W efficacy with field-selectable CCT (3000/4000/5000K) and 0-10V dimming on 120–277V, it carries an IP65 rating, BUG rating B3-U0-G3, a 50,000-hour rated life, and a 7-year warranty. White finish; optional motion sensor compatible.
| Watts | 30/45/60W (Field-Adjustable) |
| Lumens | 4,200–8,400 lm |
| Color Temperature | CCT Selectable (3000K/4000K/5000K) |
| Voltage | 120–277V AC |
| Dimming | 0-10V |
| CRI | >80 |
| IP Rating | IP65 |
| Rated Life | 50,000 hrs |
| BUG Rating | B3-U0-G3 |
| Finish | White |
