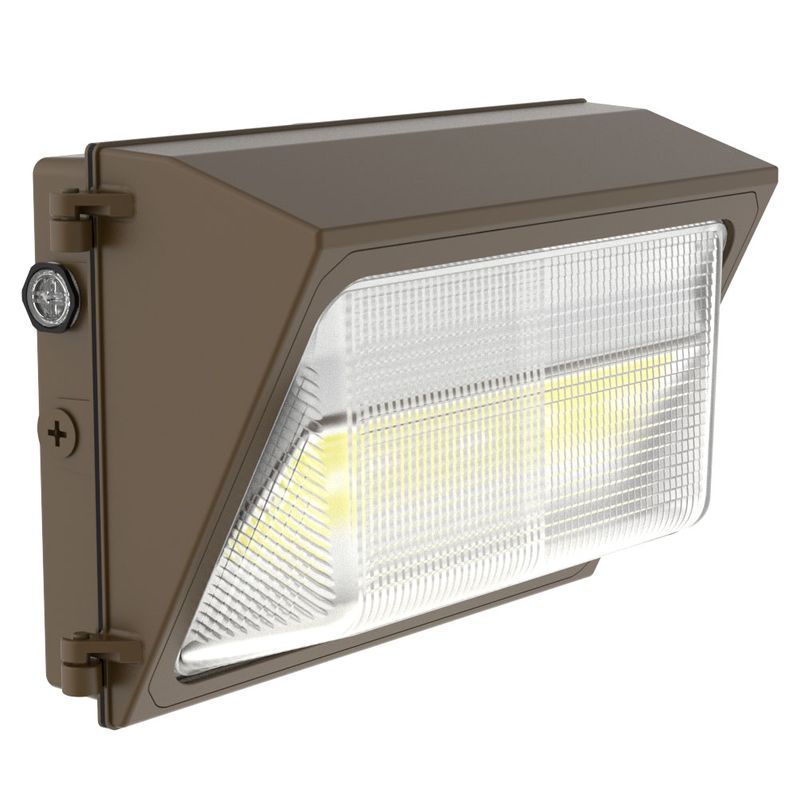

Westgate Mfg Builder Series Traditional Wall Pack, 80/100/120W, CCT Selectable, 0-10V Dimming, Photocell, Bronze, WMXE-MD-80-120W-MCTP-P
- ROCK SKU: WES-WMXE-MD-80-120W-MCTP-P
- UPC: 845060087406
- MFG Part #: WMXE-MD-80-120W-MCTP-P
$187.78
$166.74
The Westgate Mfg WMXE-MD-80-120W-MCTP-P is a high-output Builder Series Traditional LED Wall Pack suited for large commercial building exteriors, loading areas, and high-mounting perimeter security applications. Selectable wattage of 80/100/120W with field-tunable CCT (3000K/4000K/5000K) at 140 lm/W delivers up to 16,800 lumens, with 0–10V dimming and an integrated photocell. Philips Lumileds LEDs, IP65-rated aluminum and glass construction, and a 7-year warranty support this UL and DLC Premium-listed fixture on 120–277V. Bronze finish.
| Watts | 80/100/120W (Field-Adjustable) |
| Lumens | 11,200–16,800 lm |
| Color Temperature | CCT Selectable (3000K/4000K/5000K) |
| Dimming | 0-10V |
| IP Rating | IP65 |
| Rated Life | 50,000 hrs |
| Finish | Bronze |
| Listings | UL, DLC Premium |
| Warranty | 7 Years |
