Westgate Mfg Builder Series Square Canopy, 10/20/30W, CCT Selectable, Emergency Battery, Bronze, CXES-10-30W-MCTP-EM
- ROCK SKU: WES-CXES-10-30W-MCTP-EM
- UPC: 845060091632
- MFG Part #: CXES-10-30W-MCTP-EM
$152.78
$135.74

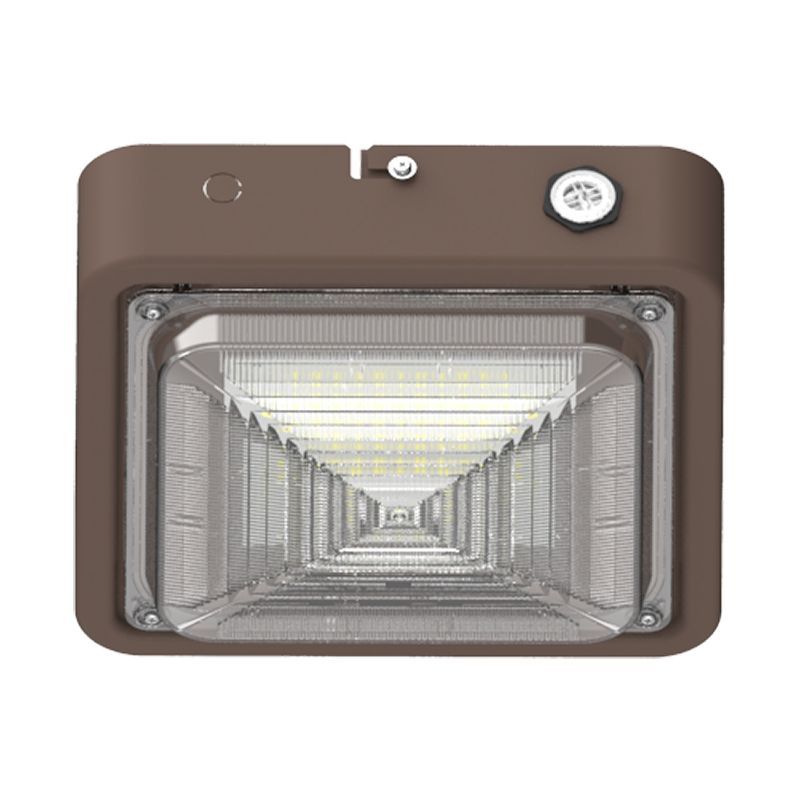

The Westgate Mfg CXES-10-30W-MCTP-EM is a Builder Series square LED canopy light designed for commercial corridors, vestibules, and utility areas requiring emergency egress capability in a compact form factor. Selectable at 10W/20W/30W with 30K/40K/50K CCT, the fixture delivers 130 LM/W efficiency via Lumileds 2835 LEDs, with 0-10V dimming and an integrated emergency battery on 100–277V. UL listed with IP65 weatherproofing and a 7-year warranty. Bronze finish.
| Watts | 10/20/30W (Field-Selectable) |
| Lumens | 1,300–3,900 lm |
| Color Temperature | CCT Selectable (3000K/4000K/5000K) |
| Voltage | 100–277V |
| Dimming | 0–10V |
| Features | Emergency Battery, IP65 |
| Rated Life | 50,000 hours |
| Finish | Bronze |
| Listing | UL |
| Warranty | 7 years |
