Westgate Mfg Builder Series Indoor Square Canopy Light, 40/60/80W, CCT Selectable, 0-10V, White, CXES-40-80W-MCTP-WH
- ROCK SKU: WES-CXES-40-80W-MCTP-WH
- UPC: 845060091687
- MFG Part #: CXES-40-80W-MCTP-WH
$117.78
$104.74

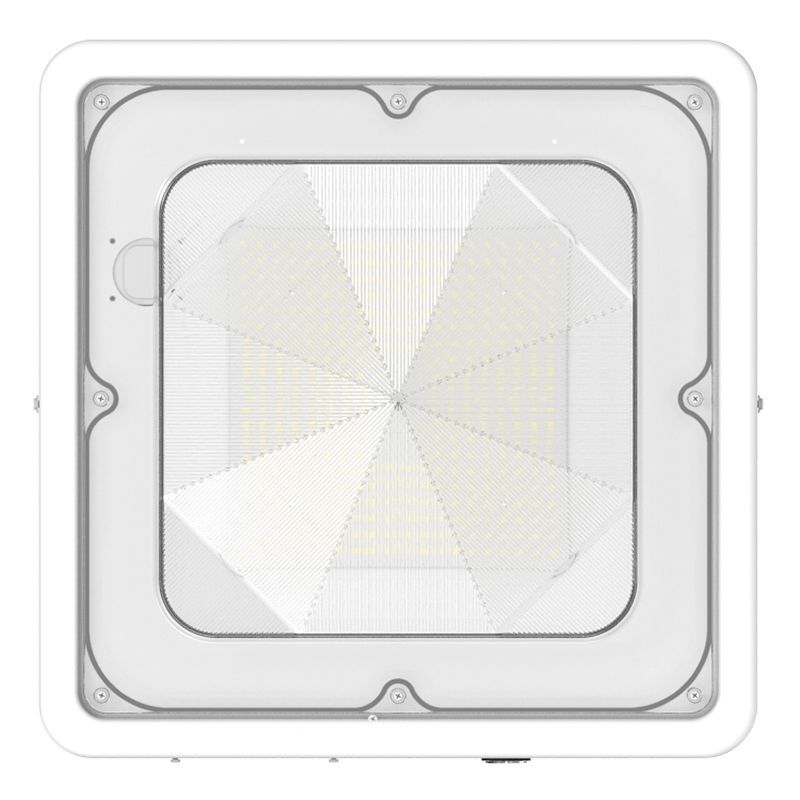

The Westgate Mfg CXES-40-80W-MCTP-WH is a Builder Series LED square indoor canopy light in white finish, designed for high-output commercial applications such as parking structures, loading docks, and large covered entryways. Selectable wattage of 40/60/80W at 130 lm/W efficacy and field-switchable CCT (3000K/4000K/5000K) enable flexible specification from a single SKU, while 0-10V dimming supports building automation integration. Rated IP65 and UL listed on 100–277V universal voltage, the fixture carries a 7-year warranty and Lumileds 2835 LED technology.
| Watts | 40/60/80W (Field-Adjustable) |
| Lumens | 5,200–10,400 lm |
| Color Temperature | CCT Selectable (3000K/4000K/5000K) |
| Voltage | 100-277V |
| Dimming | 0-10V |
| IP Rating | IP65 |
| Rated Life | 50,000 hr |
| Finish | White |
| Listing | UL |
| Warranty | 7 years |
