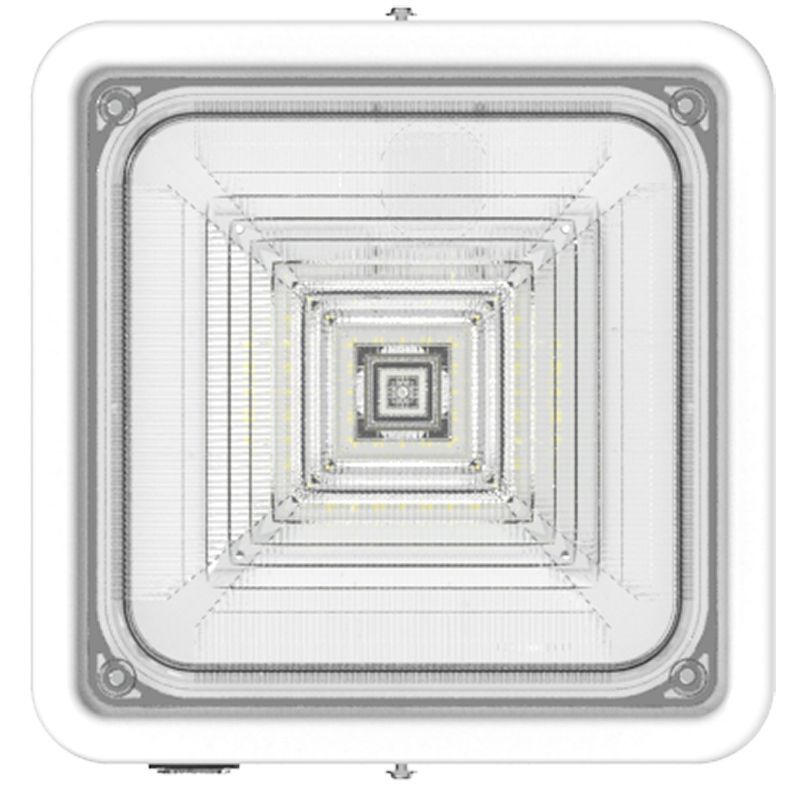

Westgate Mfg Builder Series Indoor Square Canopy Light, 10/20/30W, CCT Selectable, 0-10V, White, CXES-10-30W-MCTP-WH
- ROCK SKU: WES-CXES-10-30W-MCTP-WH
- UPC: 845060091663
- MFG Part #: CXES-10-30W-MCTP-WH
$57.78
$50.74
The Westgate Mfg CXES-10-30W-MCTP-WH is a Builder Series LED square indoor canopy light suited for commercial lobbies, stairwells, and covered entryways requiring a low-profile ceiling mount in white finish. Selectable wattage of 10/20/30W and field-switchable CCT (3000K/4000K/5000K) allow a single SKU to serve multiple project specifications, while 0-10V dimming supports building control integration. Rated IP65 and UL listed, the fixture operates on 100–277V universal voltage with a 7-year warranty and Lumileds 2835 LED technology.
| Watts | 10/20/30W (Field-Adjustable) |
| Lumens | 1,300–3,900 lm |
| Color Temperature | CCT Selectable (3000K/4000K/5000K) |
| Voltage | 100-277V |
| Dimming | 0-10V |
| IP Rating | IP65 |
| Rated Life | 50,000 hr |
| Finish | White |
| Listing | UL |
| Warranty | 7 years |
