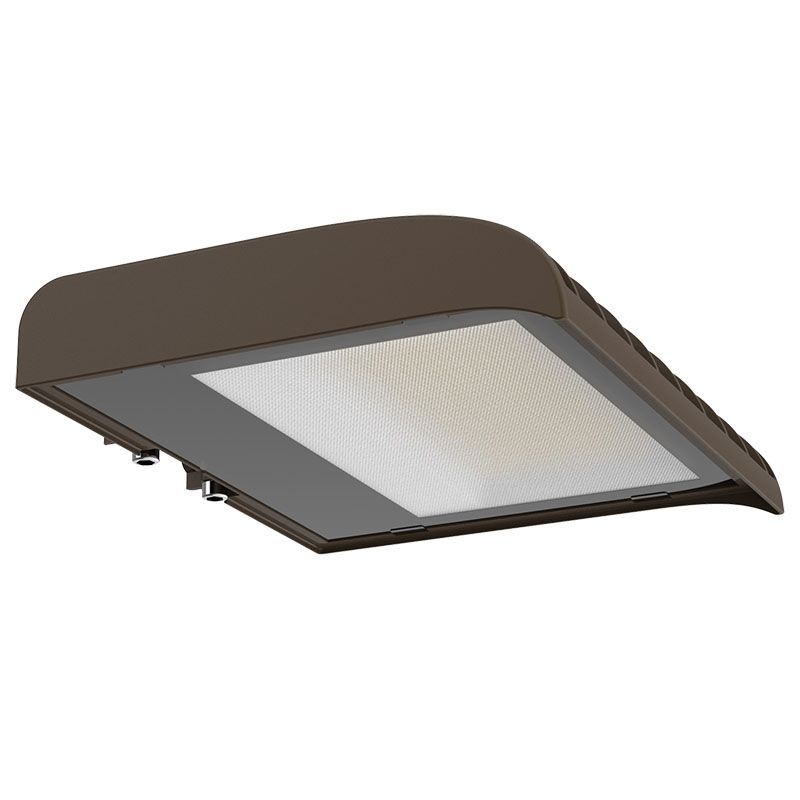

Westgate Mfg Builder Series Flood Light Large, 80/100/150W, CCT Selectable, 0-10V, Photocell, IP65, Bronze, LFXE-LG-80-150W-MCTP-P
- ROCK SKU: WES-LFXE-LG-80-150W-MCTP-P
- UPC: 845060087611
- MFG Part #: LFXE-LG-80-150W-MCTP-P
Contact us for pricing
The Westgate Mfg LFXE-LG-80-150W-MCTP-P is a Builder Series large flood light with field-selectable CCT for commercial outdoor applications including parking lots, building exteriors, and site perimeters on 120–277V with an integrated photocell for automatic dusk-to-dawn control. Adjustable at 80W, 100W, or 150W and rated at 135 lm/W, the fixture supports 3000K, 4000K, or 5000K color temperature selection using Philips Lumileds LEDs behind a glass lens with a 105° beam and 0–10V dimming in an IP65-rated aluminum and glass housing. UL listed and DLC Premium qualified with a BUG rating of B4-U3-G1, a 50,000-hour rated life, and a 7-year warranty.
| Watts | 80/100/150W (Field-Adjustable) |
| Lumens | 10,800–20,250 lm |
| Color Temperature | CCT Selectable (3000K/4000K/5000K) |
| Voltage | 120–277V |
| Dimming | 0–10V |
| Control | Integrated Photocell |
| Beam Angle | 105° |
| IP Rating | IP65 |
| Finish | Bronze |
| Rated Life | 50,000 hours |
| Certifications | UL, DLC Premium |
