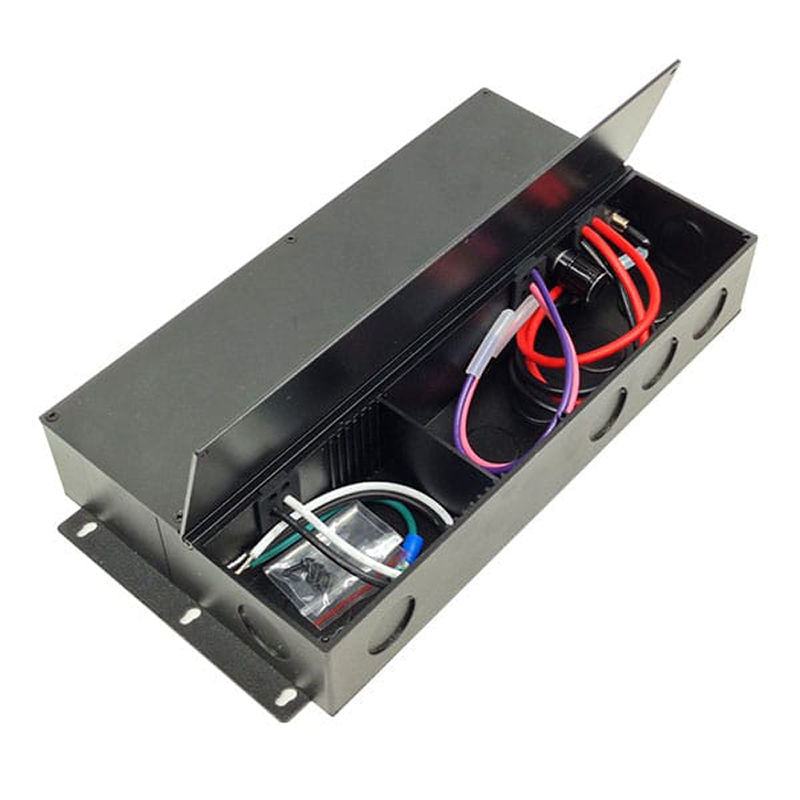

Westgate Mfg 5-in-1 Dimmable Electronic LED Driver, 384W, 100-277V Input, 24V Output, NEMA 3R, Black, LEDDR-24V-384W-UNIV
- ROCK SKU: WES-LEDDR-24V-384W-UNIV
- UPC: 840378303057
- MFG Part #: LEDDR-24V-384W-UNIV
$371.78
$329.74
The Westgate Mfg LEDDR-24V-384W-UNIV is a 384W 5-in-1 dimmable electronic LED driver with junction box designed for commercial and architectural LED lighting installations requiring universal voltage compatibility. Accepting 100–277V input and delivering a regulated 24V DC output, it supports five dimming protocols — Triac/phase, 0-10V, 1-10V, potentiometer, and 10V PWM — providing broad compatibility with existing control systems. The aluminum housing carries a NEMA 3R rating for wet location use, with a power factor greater than 0.9, THD below 20%, and a 50,000-hour rated life backed by a 3-year warranty.
| Output Power | 384W at 24V |
| Input Voltage | 100–277V AC |
| Output Voltage | 24V DC |
| Dimming | TRIAC/Phase, 0–10V, 1–10V, Potentiometer, 10V PWM |
| Power Factor | >0.9 |
| THD | <20% |
| IP Rating | NEMA 3R |
| Operating Temperature | −40°F to 140°F |
| Rated Life | 50,000 hr |
| Warranty | 3 years |
