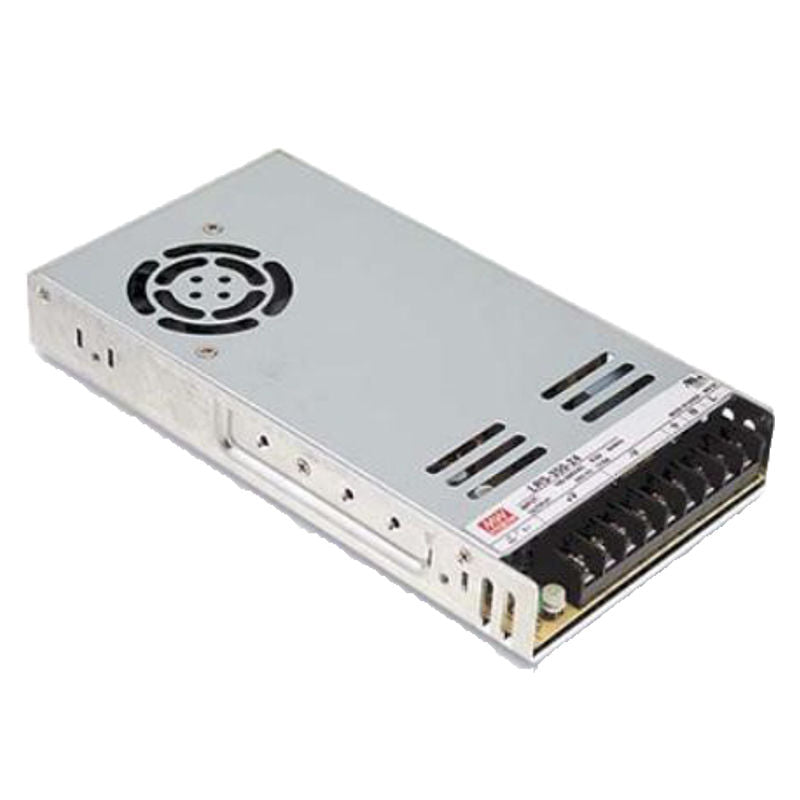

Westgate LED Indoor Electronic Ribbon Light Hardwire Drivers, 350W, ULR-IN-HWDR-350W
- ROCK SKU: WES-ULR-IN-HWDR-350W
- UPC: 845060025071
- MFG Part #: ULR-IN-HWDR-350W
$153.69
Product dimensions
-
Width:
4.8 IN
-
Height:
1.2 IN
-
Depth:
8.8 IN
-
Weight:
0 LBS
IP20
- Ul Approved
- Output Volt 24V/ 24V
- Intput Volt 100-120V
- 350W
| Output power | 350W |
| Output Current | 0~29A |
| Output DC Voltage | 24V |
| Setup; Rise time | 1300ms; 50ms/230VAC 1300ms; 50ms/115VAC at full load |
| Hold up time | 16ms/230VAC 12ms/115VAC at full load |
| Leakage Current | <2mA / 240VAC |
| Efficiency | 83.5% |
| Operating temperature | up to 158°F |
| Protections | Short circuit; Overload; Over voltage; Over Temperature |
| Safety Standards | IEC/UL 62368-1; BSMI CNS14336-1; EAC TP TC 004;KC K60950-1 (for LRS-350-12/24 only) approved |
| Withstand Voltage | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC |
| Isolation Resistance | I/P-O/P; I/P-FG; O/P-FG:100M Ohms/500VDC |
| EMC Emission | Compliance to BSMI CNS13438; EAC TP TC 020;KC KN32 KN35 |
